Product Details
Beyond Rugged: Why K8 Linux is the Ultimate Productivity Tool for US Industries| K8 Active vs. Standard Rugged Tablets: Comparison Guide | |||
| Feature | Standard Rugged Tablets (Typical Carrier In-Stock) | K8 Linux (Aozora Wireless) | The K8 Linux Advantage |
| Network Support | Verizon/AT&T In-Stock | Unlocked | Same reliable network coverage with significantly lower hardware costs. |
| Battery Life | 4,000mAh – 7,600mAh | 10,200mAh Ultra-Capacity | Up to 2x the endurance. Power through double shifts without recharging. |
| Night Vision | None (Flashlight only) | 20MP Sony Infrared Night Vision | Capture clear evidence and conduct inspections in total darkness. |
| Industrial Docking | Standard USB-C (Prone to wear) | 14-Pin Heavy-Duty Pogo Pin | Designed for rugged vehicle mounts and frequent docking. Reduces port failure. |
| Sunlight Visibility | 350 – 500 nits (Hard to read) | 600 nits High-Brightness | Sunlight-readable display ensures field accuracy even in direct glare. |
| Durability Rating | IP68 / MIL-STD-810G | IP69K / MIL-STD-810H (Latest) | Survives high-pressure steam jets and 5ft drops to concrete. Built for extremes. |
| Glove-Touch Mode | Limited responsiveness | Professional Glove-Touch Support | Seamless operation even with thick work gloves or in rainy conditions. |
| Total Cost (TCO) | High Brand Premium | Factory-Direct Pricing | Save 30%–50% on hardware deployment without sacrificing performance. |
| Stop overpaying for a brand name. Get the power, connectivity, and durability your team actually needs. Request a demo unit of the 8 inch rugged tablet today. | |||
Specification
| Basic Features | |
| Product Form | Rugged Android Tablet |
| Colors | Black/Gray |
| Dimensions | 225mm*135mm*14.5mm |
| Weight | 590g |
| Protection Standard | MIL-STD-810H |
| Water Proof | IP68 / IP69K |
| Operating Temperature | -20 °C to 60 °C |
| Storage Temperature | -30 °C to 70 °C |
| Relative Humidity | 5% - 95% |
| Certifications | |
| OS | GMS Certified |
| Carriers | AT&T / Verizon Non-Stock Certified, T-Mobile, Unlocked |
| Approvals | PTCRB, FCC |
| Display / Touch | |
| Size | 8" |
| Display Panel | IPS (Super TFT) |
| Resolution | 1200*1920 (FHD+) |
| Pixels Density | 283 PPI |
| Color Depth | 16.7M |
| Brightness | 600 nits high brightness, Sunlight readable |
| View Angle | Full View angle |
| Cover Glass | Corning 5th Gorilla glass |
| Touch Type | 10 points Capacitive touch, Glove touch |
| Platform | |
| Operating System | Android 13 |
| Chipset | Qualcomm QCM4290 |
| CPU | 8-Core, 4x Cortex A73 @2.0GHz + 4x Cortex A53 @1.8GHz |
| GPU | Qualcomm Adreno 610 GPU @950MHz |
| DPU | Qualcomm Adreno 921 DPU |
| NPU | Qualcomm Hexagon 683 compute DSP, 2x HVX @1.0GHz |
| Modem | Qualcomm Snapdragon X11 LTE modem |
| Memory | |
| RAM | 6GB LPDDR4X + 6GB Extended RAM |
| Storage | 128GB UFS2.1 |
| Camera | |
| Front Camera | 13MP FF, 1080p@60fps |
| Rear Camera | 25MP AF Main Camera, 1080p@60fps |
| 20MP AF Night vision Camera, 1080p@60fps | |
| 13MP Macro Camera | |
| Battery | |
| Type | Lithium-ion polymer battery |
| Nominal Voltage | 3.86V |
| Typical Capacity | 10200mAh |
| Typical Energy | 39.38Wh |
| Standby Time | 26 days |
| Sensors | |
| Type | Accelerometer(Gravity Sensor), Gyroscope, Light Sensor, Proximity Sensor, Hall Sensor, Barometric Sensor |
| General configuration | |
| Speaker | Box Speaker*1 |
| MIC | Noise reduction MIC*1 |
| Motor | Motor*1 |
| Flash | Infrared LED*2, White LED*1 |
| Side Keys | Power, Volume up/down |
| Key Pad | Home, Retun, Menu, Fun1, Fun2 |
| Network | |
| 4G Technology | LTE Cat 6 |
| 4G Bands | LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE TDD: B41 |
| Connectivity | |
| WiFi | WiFi 5, 802.11a/b/g/n/ac, 2.4GHz & 5GHz Qualcomm FastConnect 6100 system |
| Hotspot | Yes |
| VoLTE | Yes |
| VoWiFi | WiFi Calling |
| Bluetooth | Bluetooth 5.1, Qualcomm TrueWireless Technology |
| GNSS | GPS / GLONASS / BDS / Galileo / NavIC / QZSS Qualcomm Sensor-Assisted Positioning |
| NFC | NFCIP-1 & NFCIP-2, ISO 14443 Type A and B, Felica(Proximity) and ISO 15693(Vicinity) |
| USB Interface | USB Type-C 3.1, USB OTG |
| USB Type-C headphone jack | |
| Qualcomm Quick Charge 3 technology | |
| Pogo Pin | 14 pin, 1x USB2.0, 1x Uart, 1x 5V Out, 1x Charging In, 3x GPIO |
| SIM Card Slot | Nano SIM*2 |
| TF Card Slot | Micro SD3.0*1, up to 1TB |
| Accessories | |
| Charger | US Standard, Max charging power 18W |
| Data Cable | USB Type-C Cable |
| SIM Tool | Ejection Pin |
| Hand Strap | Leather Hand strap |
| HPPS (Option) | High Precision Positioning System RTK BackClip |
Features
1. Native Linux Architecture: Uncompromising Edge Control
Subheadline: Run pure Yocto 5.15 and Ubuntu on powerefficient Qualcomm ARM silicon with zero bloatware and absolute system ownership.
Bullet Points:
Built for Industrial Workloads: Powered by the Qualcomm SM6225 octacore processor, 6GB LPDDR4X RAM, and 128GB UFS 2.1 storage—ready to compile and deploy Docker containers, ROS/ROS2 nodes, Qt industrial GUIs, and edge AI algorithms out of the box.
Complete Freedom & Reliability: Enjoy permanent root access, customized kernel stripping, and total lifecycle control without aggressive Android background process killers or unexpected forced OS updates.

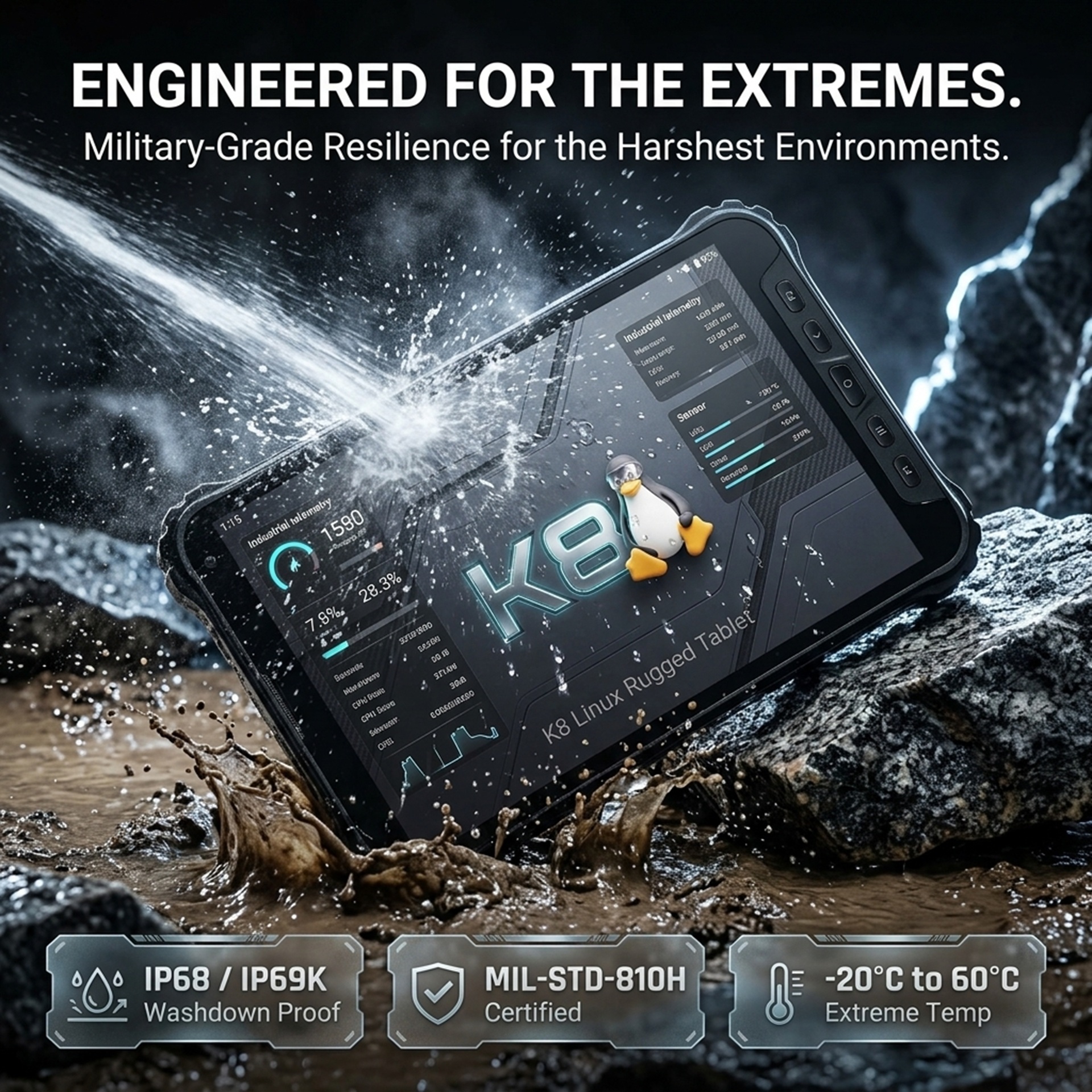

2. FieldProven Armor: IP68/IP69K & MILSTD810H Certified
Subheadline: Engineered to endure highpressure washdowns, continuous vibration, shock, and extreme temperatures from 20°C to 60°C.
Bullet Points:
MissionReady Ingress Defense: Certified IP68 submersible and IP69K highpressure/steam washdown proof, wrapped in a dropresistant chassis built for mining, heavy machinery, and rough trails.
600Nit SunlightReadable IPS: 8inch FHD+ (1200×1920) display protected by Corning® Gorilla® Glass 5 keeps your schematics and telemetry crystalclear under scorching direct sunlight.
Wet & Glove Touch Compatibility: Responsive 10point capacitive touch that performs flawlessly even with heavy work gloves or water droplets covering the screen.

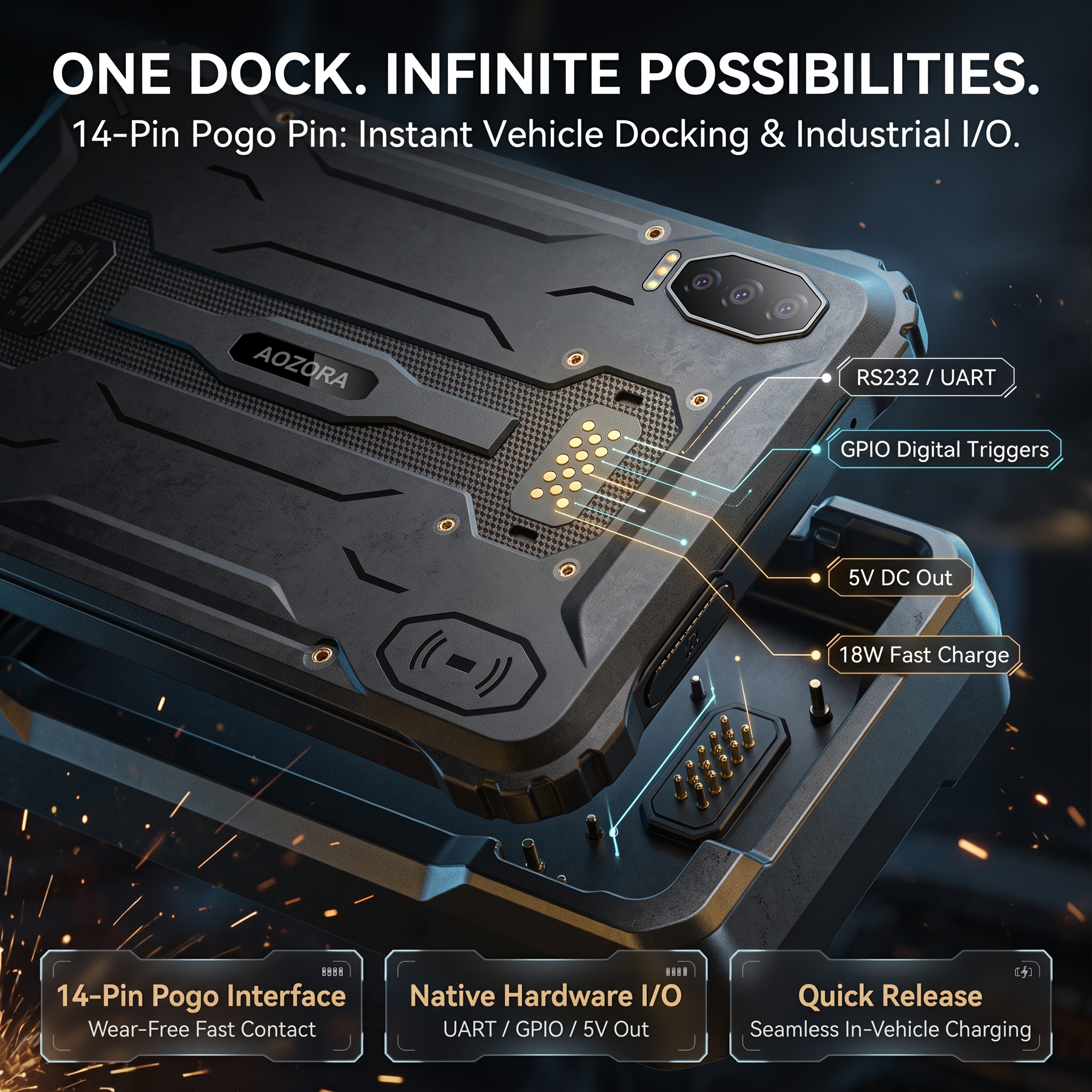

3. IndustrialGrade I/O: 14Pin Pogo Pin & FullFeatured USBC
Subheadline: Instant vehicle docking and direct peripheral integration without port wear and tear.
Bullet Points:
Integrated 14Pin Pogo Interface: Features 1× USB 2.0, 1× UART serial, 3× GPIO, 5V DC output, and dedicated charging contacts—mount and lock into vehicle cradles for oneclick power and zero cable wear.
Direct Hardware Interfacing: Direct hardwarelevel connection for RTK base stations, CANbus adapters, industrial sensors, and relays via onboard UART and GPIO.
HighBandwidth USBC 3.1: Supports highspeed data acquisition, OTG peripheral access, and Qualcomm Quick Charge 3.0 technology.

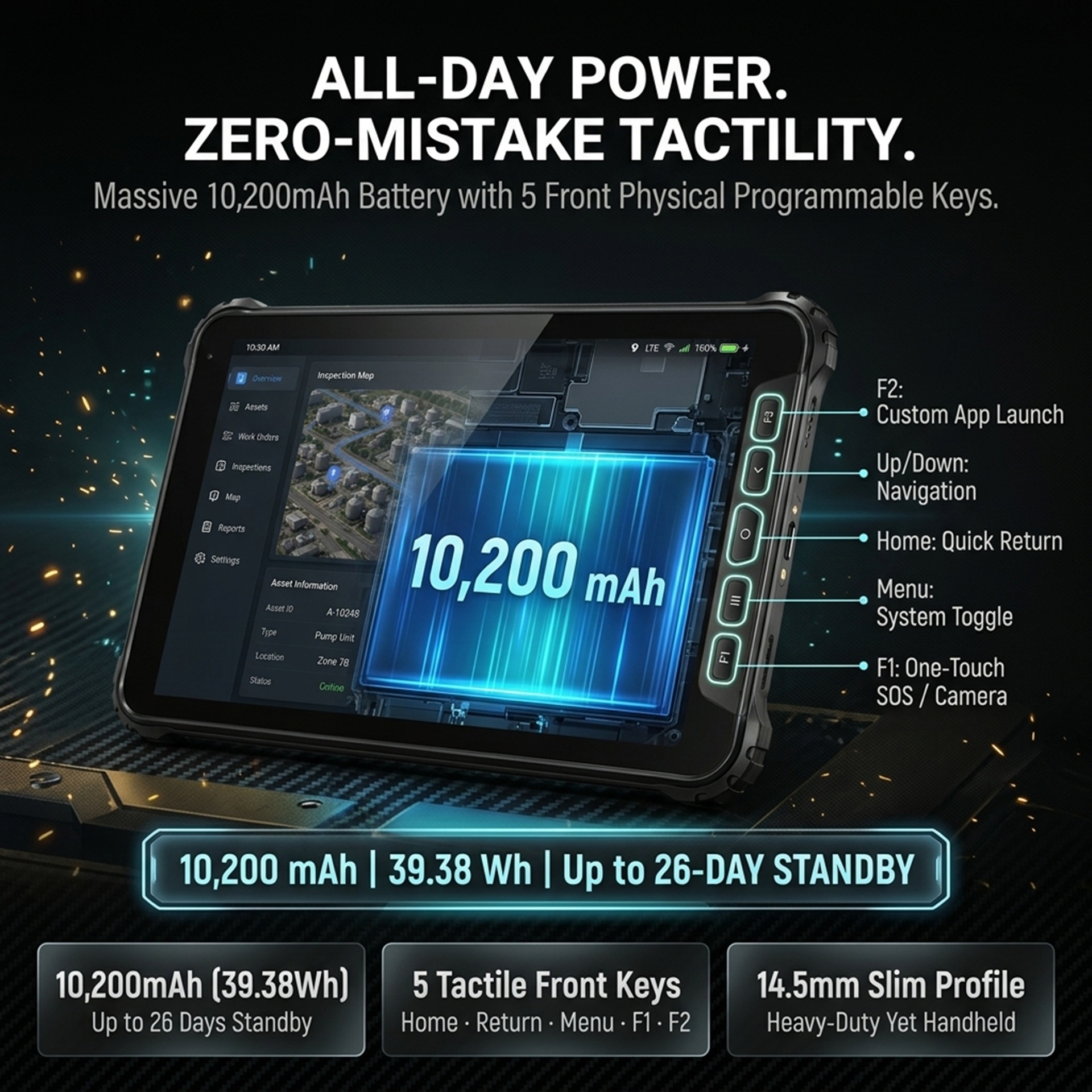

4. Uninterrupted 10,200mAh Power: Standby for up to 26 Days
Subheadline: Massive 39.38Wh capacity designed to outlast long, offgrid field shifts without tethered charging.
Bullet Points:
HeavyDuty LithiumPolymer Battery: Packs a massive 10,200mAh capacity to support extended remote inspections, fieldwork, and multiday overland journeys.
Eliminate Downtime: Eliminates reliance on bulky external battery packs, backed by 18W fast charging for rapid field turnarounds.
5. Global 4G LTE & 6 Constellation Precision Positioning
Subheadline: Seamless cellular handoff and deadreckoning navigation across tunnels, canyons, and remote terrains.
Bullet Points:
North American & Global Carrier Support: LTE Cat 6 multiband coverage (FDD/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/ B66/B71 and TDD B41) with dual NanoSIM slots for seamless private/public network failover.
6 Constellation SensorAssisted GNSS: Leverages GPS, GLONASS, Galileo, BeiDou, QZSS, and NavIC paired with Qualcomm SensorAssisted Positioning (dead reckoning) to maintain submeter tracking inside urban canyons, tunnels, and deep valleys.

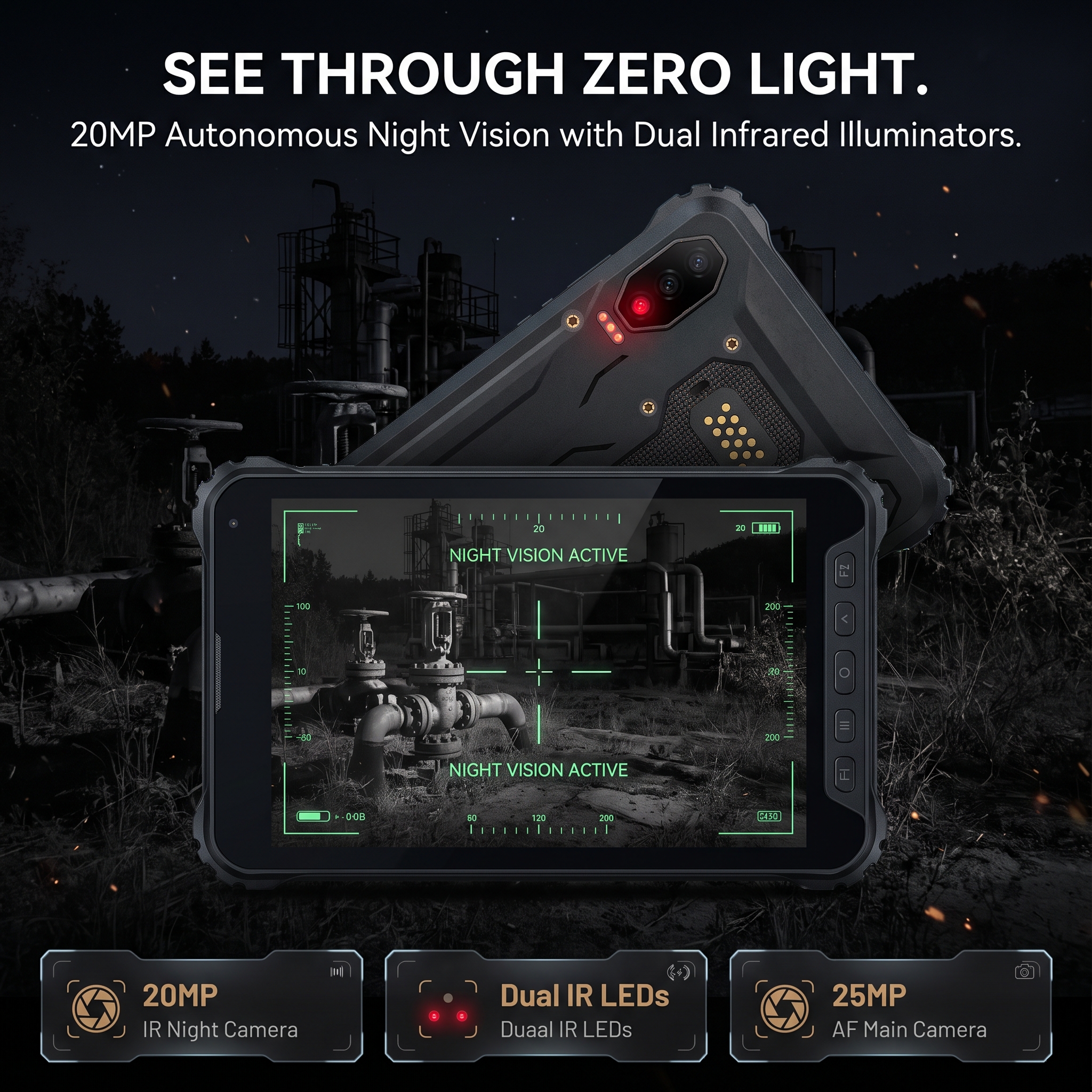

6. Autonomous Night Vision: 20MP Infrared Sensor with Dual IR LEDs
Subheadline: See through zerolight environments for pipeline inspections, mine shafts, and covert tactical operations.
Bullet Points:
True ZeroLight Clarity: Dedicated 20MP infrared night vision camera paired with dual 850nm IR illuminators captures crisp monochrome images and video in pitch darkness.
Versatile Optical Suite: Complemented by a 25MP autofocus main camera and a 13MP macro lens to capture both highresolution site overviews and microscopic equipment defects.
7. Tactile Precision: 5 Front Physical Programmable Keys
Subheadline: Full manual control under heavy vibration, mud coverage, and zerovisibility conditions.
Bullet Points:
NoLook Tactical Execution: Frontfacing tactile buttons (Home, Return, Menu, Fun1, Fun2) eliminate accidental touch inputs when traversing rough terrain or operating in downpours.
Custom Macro Triggering: Assign custom scripts, waypoint tags, emergency SOS signals, or camera shutters to programmable keys (Fun1/Fun2) for singlepress instant execution.
K8 Linux is designed for professionals working in demanding environments:
Application | scenarios |
Site inspection, digital drawings, project management | |
Inventory management, barcode scanning, WMS applications | |
MES systems, production monitoring and quality inspection | |
Fleet management, GPS tracking and vehicle deployment | |
Outdoor maintenance, repair and remote operations |
Q1: What is the Aozora K8 Linux rugged tablet designed for?
Answer: The K8 Linux is designed for industrial applications including construction, logistics, manufacturing, transportation and field service.
Q2: Is K8 Linux suitable for outdoor environments?
Answer: Yes. K8 Linux features MIL-STD-810H durability, IP68/IP69K protection and a sunlight-readable display.
Q3: What makes K8 Linux different from consumer tablets?
Answer: Unlike consumer tablets, K8 Linux is designed for industrial environments with stronger protection, longer battery life and enterprise connectivity.
Q4: Can K8 Linux support warehouse applications?
Answer: Yes. K8 Linux supports industrial workflows including inventory management, barcode scanning and mobile data collection.
