W58RA
AOZORA
| Hardware features | |
| Chip scheme | MT7981BA+MT7976CN+MT7531AE |
| Storage | 512MB DDR3 + 128MB SPI NAND FLASH |
| Cellular network mode | 5G:NR NSA |
| 5G:NR SA | |
| 4G：LTE-TDD，LTE-FDD | |
| 5G/4G module | RM520N-GL (Qualcomm X62) |
| NR 5G SA：n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |
| NR 5G NSA：n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |
| LTE-FDD：B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | |
| LTE-TDD：B34, B38, B39, B40, B41, B42, B43, B48 | |
| LAA：B46 | |
| WiFi protocol standards | IEEE 802.11b、IEEE 802.11g、IEEE 802.11a、IEEE 802.11n、IEEE 802.11ac、IEEE 802.11ax、IEEE 802.3、IEEE 802.3u、IEEE 802.3x |
| Interface | 1 x 10/100M/1000M WAN port, supporting Auto MDI/MDIX |
| 3 x 10/100M/1000M LAN ports, support Auto MDI/MDIX | |
| 1* nano SIM slots(Hot plug), 1* eSIM | |
| Button | Card switching button |
| Reset (press and hold for 5 seconds) | |
| LED | 5G, 4G, WIFI signal indicator, internet access indicator |
| Antenna | 5dBi gain non-detachable antenna |
| Number of antennas | 4* 5G NR and 4G LTE antennas, 2* Wi-Fi antennas SMA |
| Power supply | Type-C 12V/1.5A |
| Wireless features | |
| Basic functions | Wireless on/off |
| SSID Broadcast Enable/Off | |
| Channel selection: 1 ~ 13 (2.4G), 36 ~ 165 (5GHz) | |
| 2.4G bandwidth: 20MHz, 40MHz | |
| 5G bandwidth: 20MHz, 40MHz, 80MHz, 160MHz | |
| WiFi 2.4G frequency | 2412~2472MHz |
| WiFi 5G frequency | 5180~5825MHz |
| WiFi Max Rate | 3000Mbps (2.4G 2*2 MIMO up to 574Mbps, 5G 2*2 MIMO up to 2402Mbps) |
| WiFi Max Access | 128 Users |
| Power | 2.4G Actual Power: |
| 802.11b 22±1.5dBm | |
| 802.11g 21±1.5dBm | |
| 802.11n20 19±1.5dBm | |
| 802.11n40 19±1.5dBm | |
| 802.11ac40 17.5±1.5dBm | |
| 802.11ax40 17.5±1.5dBm | |
| 5G Actual Power: | |
| 802.11a 19±1.5dBm | |
| 802.11n20 18.5±1.5dBm | |
| 802.11n40 18.5±1.5dBm | |
| 802.11ac80 17.5±1.5dBm | |
| 802.11ax80 16.5±1.5dBm | |
| Cellular Data Rate (Max.) | 5G SA Sub-6: DL 2.4 Gbps; UL 900 Mbps |
| 5G NSA Sub-6: DL 3.4 Gbps; UL 550 Mbps | |
| LTE: DL 1.6 Gbps; UL 200 Mbps | |
| WCDMA: DL 42 Mbps; UL 5.76 Mbps | |
| Working mode | AP |
| Router | |
| Repeater | |
| Wireless security | Wireless MAC address filtering |
| 64/128 bit WEP encryption | |
| WPA-PSK、WPA2-PSK、WPA3-SAE、WPA/WPA2-PSK 、WPA2-PSK/WPA3-SAE | |
| WPS（PBC） | |
| Other features | Wireless host status display |
| Wireless site scanning | |
| Seamless roaming between nodes | |
| Seamless roaming between bands | |
| WiFi settings | WiFi basic settings (dual-band integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment). |
| Advanced settings (wireless client isolation, 802.11h, WMM multimedia acceleration). | |
| Multiple SSIDs (SSIDs, encryption methods, PWDs, and encryption algorithms) | |
| Software features | |
| Network status | Register network information: Click to directly configure APN dialing information |
| Network Scan Information: Click each to scan the network signal quality of the current location and provide optimal location detection | |
| System status view: device information (power-on duration, system time, software version, hardware version), 4/5G dial-up information, LAN status, WIFI information, IPv6 information, and Mesh node information | |
| Mesh node information: Mesh networking node information and Mesh networking tutorial tips | |
| Client information: You can directly pull a client into the blacklist | |
| Wifi information: You can directly jump to configure WiFi information | |
| Real-time Internet access rate display, WAN IP address display, software version information | |
| Network settings | Data Switch, Roaming Switch, Mode Selection, Default APN Information, and APN Manual Configuration |
| FAILOVER switches: PPPOE, DHCP, and static | |
| 4G/5G band locking | |
| Wifi settings | Wifi name and password, wifi timing, channel bandwidth setting, power regulation, bridging function, OFDMA |
| SMS feature | SMS sending and receiving, SMS center settings |
| Guest network | Configure the SSID, rate limit, and startup time limit of the guest network |
| Parental controls | Online device display, online time, restricted Internet time period, URL filtering configuration |
| Advanced settings | Working Mode, SIM PIN, Mobile Data Switch, Bandwidth Control, Sleep Mode, LED Control, Filter MAC Address, Firewall, Static Routing, DDNS, Virtual Server, DMZ Host, UPnP, TR069 Settings |
| System settings | System Status, Time Setting, Password Management, Configuration Management, Firmware Upgrade, Scheduled Restart, System Log, LAN Setting, DHCP Binding, Reboot & Reset, Remote Management |
| Other | |
| Use environment | Operating temperature: -20°C to 50°C |
| Storage temperature: -40°C to 70°C | |
| Operating humidity: 10% to 90% RH non-condensing | |
| Storage humidity: 5% to 95% RH non-condensing | |
| Dimensions | 166*110*29mm |
| Hardware features | |
| Chip scheme | MT7981BA+MT7976CN+MT7531AE |
| Storage | 512MB DDR3 + 128MB SPI NAND FLASH |
| Cellular network mode | 5G:NR NSA |
| 5G:NR SA | |
| 4G：LTE-TDD，LTE-FDD | |
| 5G/4G module | RM520N-GL (Qualcomm X62) |
| NR 5G SA：n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |
| NR 5G NSA：n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |
| LTE-FDD：B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | |
| LTE-TDD：B34, B38, B39, B40, B41, B42, B43, B48 | |
| LAA：B46 | |
| WiFi protocol standards | IEEE 802.11b、IEEE 802.11g、IEEE 802.11a、IEEE 802.11n、IEEE 802.11ac、IEEE 802.11ax、IEEE 802.3、IEEE 802.3u、IEEE 802.3x |
| Interface | 1 x 10/100M/1000M WAN port, supporting Auto MDI/MDIX |
| 3 x 10/100M/1000M LAN ports, support Auto MDI/MDIX | |
| 1* nano SIM slots(Hot plug), 1* eSIM | |
| Button | Card switching button |
| Reset (press and hold for 5 seconds) | |
| LED | 5G, 4G, WIFI signal indicator, internet access indicator |
| Antenna | 5dBi gain non-detachable antenna |
| Number of antennas | 4* 5G NR and 4G LTE antennas, 2* Wi-Fi antennas SMA |
| Power supply | Type-C 12V/1.5A |
| Wireless features | |
| Basic functions | Wireless on/off |
| SSID Broadcast Enable/Off | |
| Channel selection: 1 ~ 13 (2.4G), 36 ~ 165 (5GHz) | |
| 2.4G bandwidth: 20MHz, 40MHz | |
| 5G bandwidth: 20MHz, 40MHz, 80MHz, 160MHz | |
| WiFi 2.4G frequency | 2412~2472MHz |
| WiFi 5G frequency | 5180~5825MHz |
| WiFi Max Rate | 3000Mbps (2.4G 2*2 MIMO up to 574Mbps, 5G 2*2 MIMO up to 2402Mbps) |
| WiFi Max Access | 128 Users |
| Power | 2.4G Actual Power: |
| 802.11b 22±1.5dBm | |
| 802.11g 21±1.5dBm | |
| 802.11n20 19±1.5dBm | |
| 802.11n40 19±1.5dBm | |
| 802.11ac40 17.5±1.5dBm | |
| 802.11ax40 17.5±1.5dBm | |
| 5G Actual Power: | |
| 802.11a 19±1.5dBm | |
| 802.11n20 18.5±1.5dBm | |
| 802.11n40 18.5±1.5dBm | |
| 802.11ac80 17.5±1.5dBm | |
| 802.11ax80 16.5±1.5dBm | |
| Cellular Data Rate (Max.) | 5G SA Sub-6: DL 2.4 Gbps; UL 900 Mbps |
| 5G NSA Sub-6: DL 3.4 Gbps; UL 550 Mbps | |
| LTE: DL 1.6 Gbps; UL 200 Mbps | |
| WCDMA: DL 42 Mbps; UL 5.76 Mbps | |
| Working mode | AP |
| Router | |
| Repeater | |
| Wireless security | Wireless MAC address filtering |
| 64/128 bit WEP encryption | |
| WPA-PSK、WPA2-PSK、WPA3-SAE、WPA/WPA2-PSK 、WPA2-PSK/WPA3-SAE | |
| WPS（PBC） | |
| Other features | Wireless host status display |
| Wireless site scanning | |
| Seamless roaming between nodes | |
| Seamless roaming between bands | |
| WiFi settings | WiFi basic settings (dual-band integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment). |
| Advanced settings (wireless client isolation, 802.11h, WMM multimedia acceleration). | |
| Multiple SSIDs (SSIDs, encryption methods, PWDs, and encryption algorithms) | |
| Software features | |
| Network status | Register network information: Click to directly configure APN dialing information |
| Network Scan Information: Click each to scan the network signal quality of the current location and provide optimal location detection | |
| System status view: device information (power-on duration, system time, software version, hardware version), 4/5G dial-up information, LAN status, WIFI information, IPv6 information, and Mesh node information | |
| Mesh node information: Mesh networking node information and Mesh networking tutorial tips | |
| Client information: You can directly pull a client into the blacklist | |
| Wifi information: You can directly jump to configure WiFi information | |
| Real-time Internet access rate display, WAN IP address display, software version information | |
| Network settings | Data Switch, Roaming Switch, Mode Selection, Default APN Information, and APN Manual Configuration |
| FAILOVER switches: PPPOE, DHCP, and static | |
| 4G/5G band locking | |
| Wifi settings | Wifi name and password, wifi timing, channel bandwidth setting, power regulation, bridging function, OFDMA |
| SMS feature | SMS sending and receiving, SMS center settings |
| Guest network | Configure the SSID, rate limit, and startup time limit of the guest network |
| Parental controls | Online device display, online time, restricted Internet time period, URL filtering configuration |
| Advanced settings | Working Mode, SIM PIN, Mobile Data Switch, Bandwidth Control, Sleep Mode, LED Control, Filter MAC Address, Firewall, Static Routing, DDNS, Virtual Server, DMZ Host, UPnP, TR069 Settings |
| System settings | System Status, Time Setting, Password Management, Configuration Management, Firmware Upgrade, Scheduled Restart, System Log, LAN Setting, DHCP Binding, Reboot & Reset, Remote Management |
| Other | |
| Use environment | Operating temperature: -20°C to 50°C |
| Storage temperature: -40°C to 70°C | |
| Operating humidity: 10% to 90% RH non-condensing | |
| Storage humidity: 5% to 95% RH non-condensing | |
| Dimensions | 166*110*29mm |

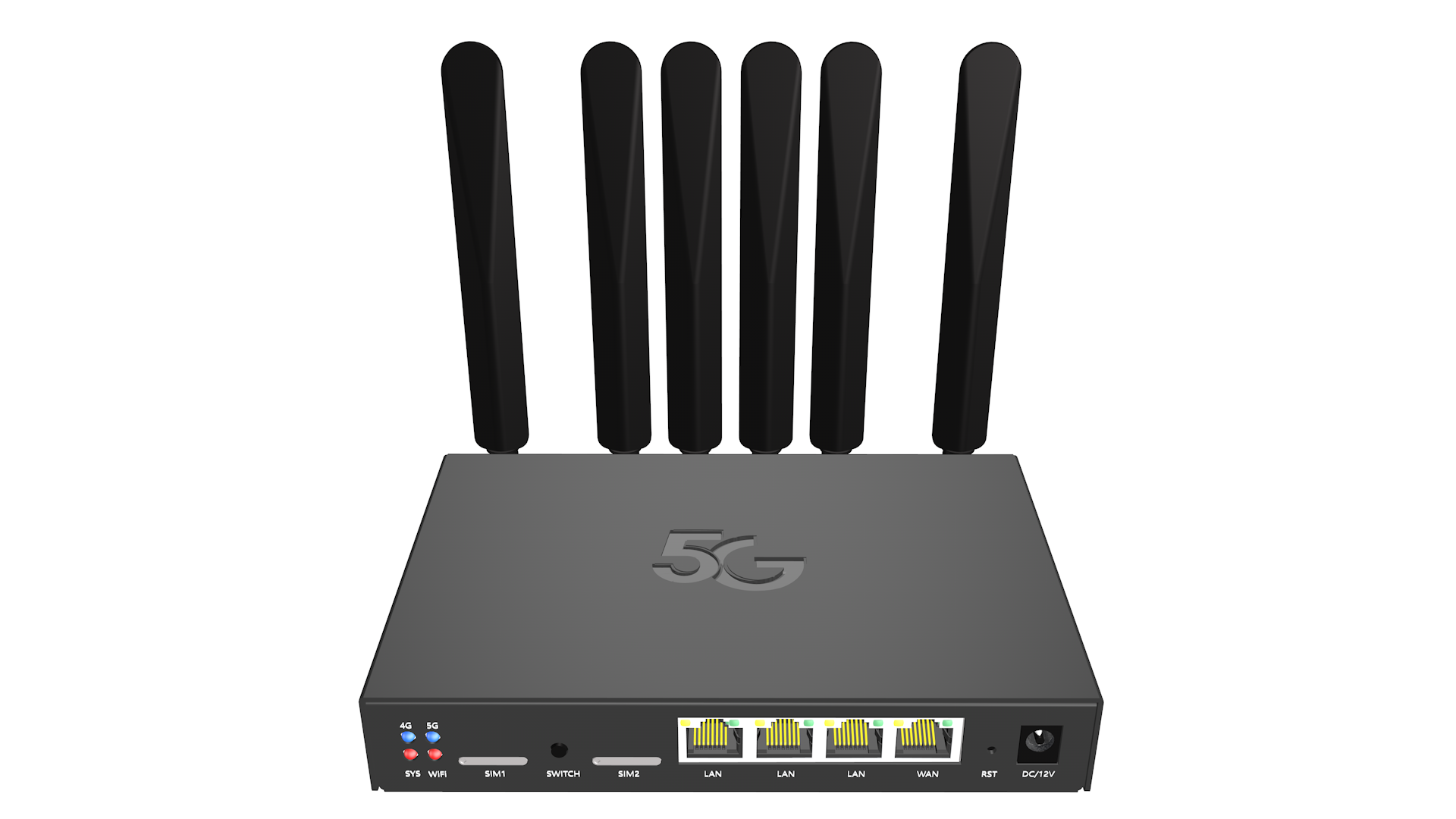

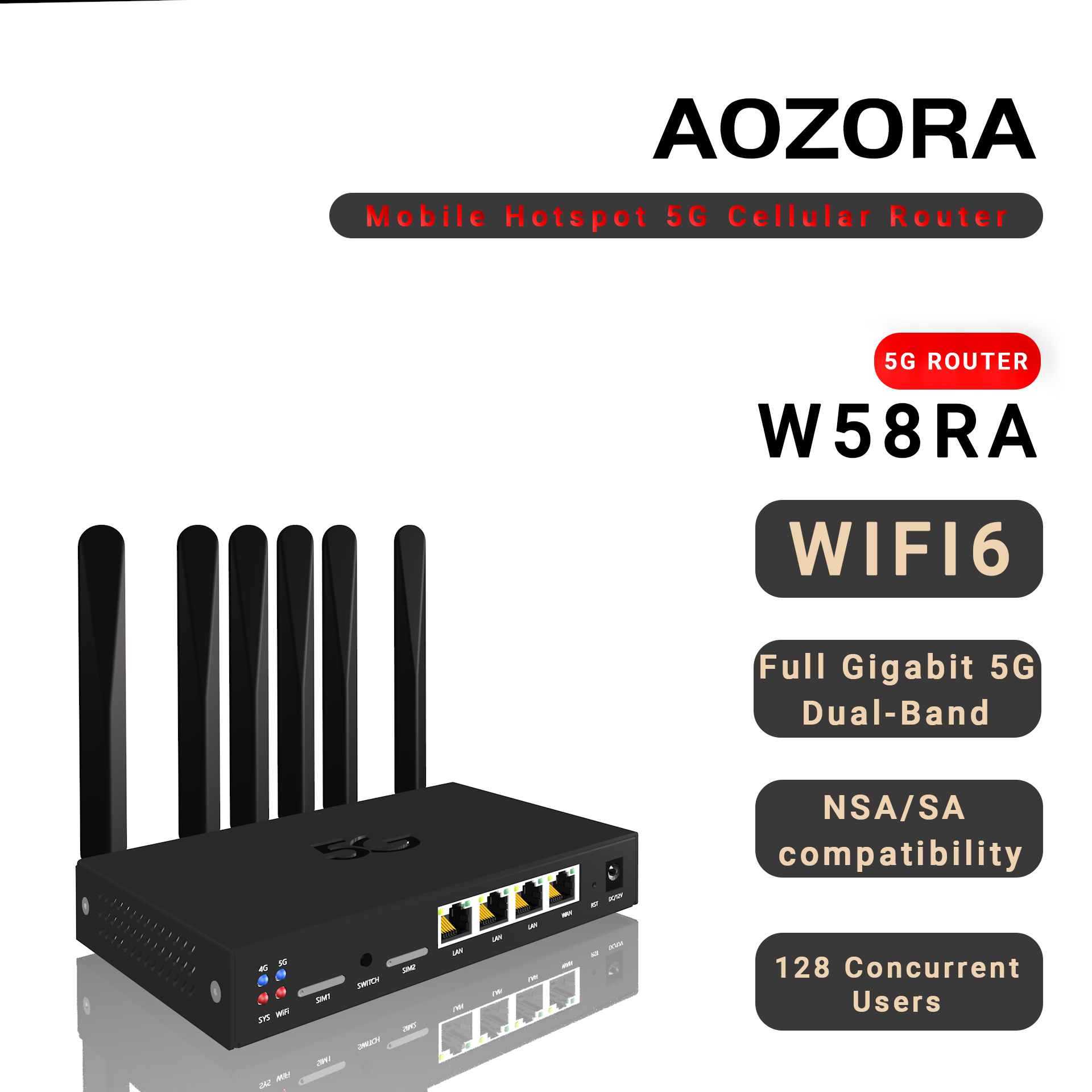

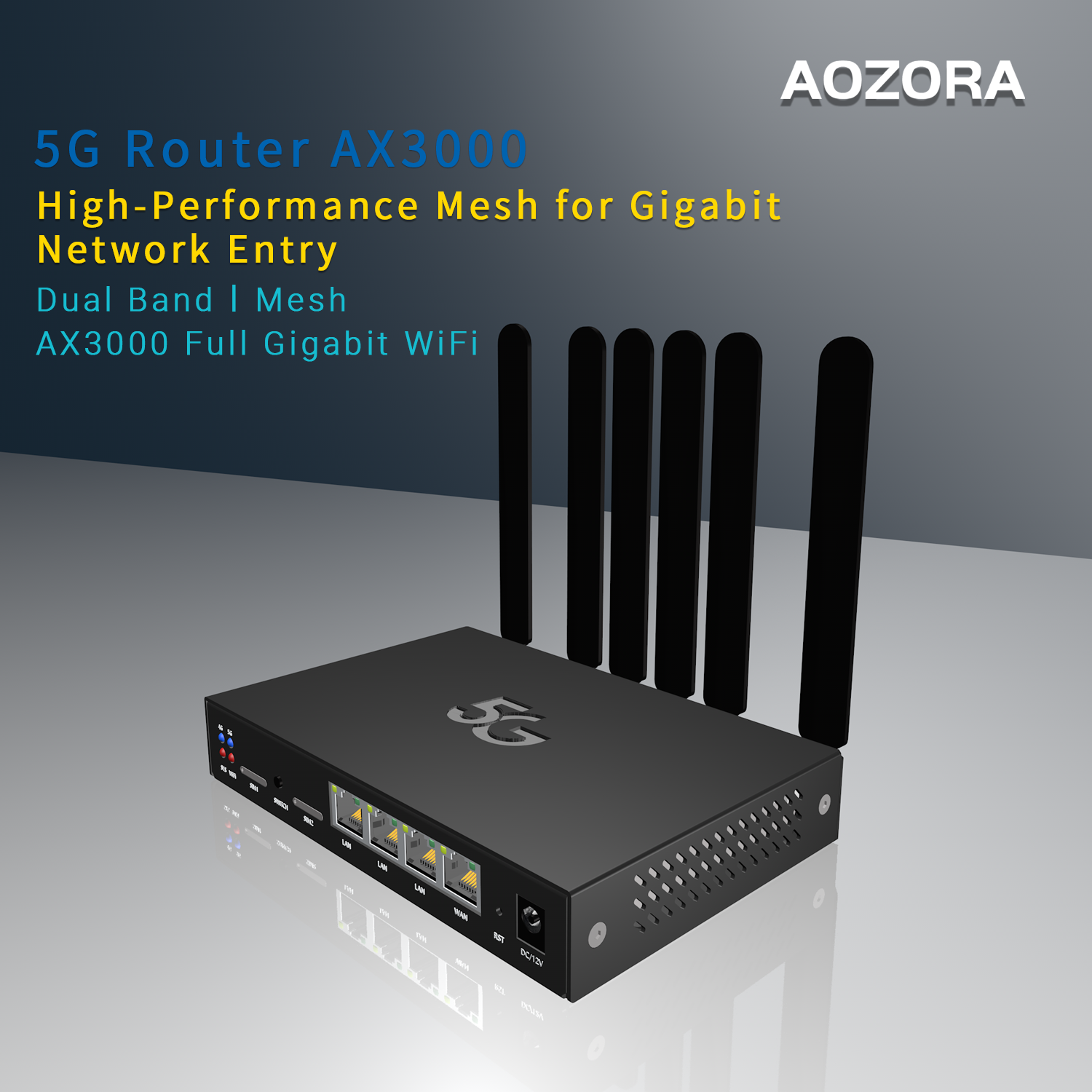

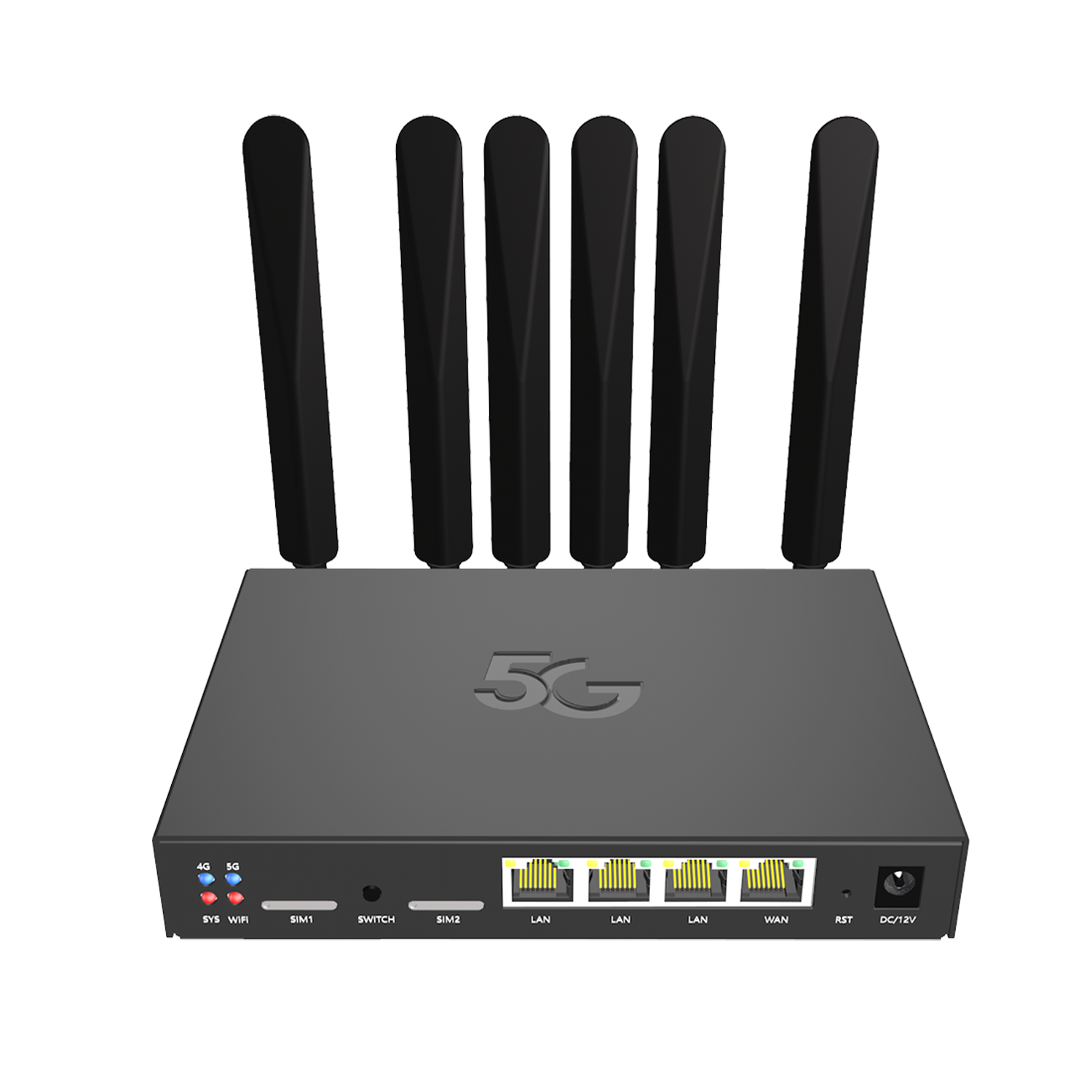

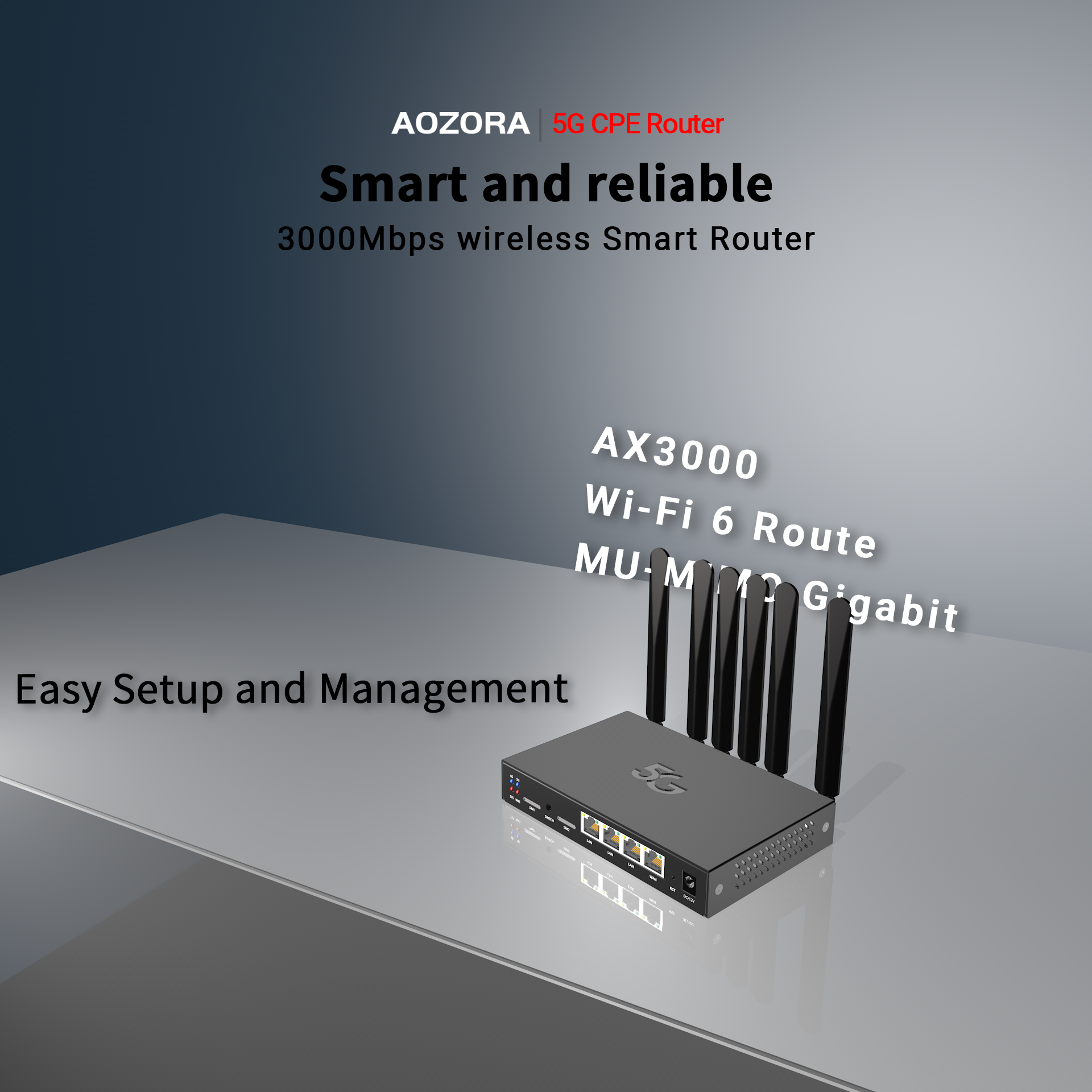

The AOZORA W58RA is a smart wireless access router (CPE) equipped with 5G and Wi-Fi 6, developed on a brand-new hardware platform to meet the growing demands of mobile terminals and IoT nodes, significantly enhancing users' wireless internet experience.
The CPE fully supports NSA/SA dual-mode compatibility, meeting China's Ministry of
Industry and Information Technology (MIIT) telecom product network access standards. Itoffers gigabit-level fiber-optic access capabilities to satisfy bandwidth requirements forVR/AR/4K/8K video streaming.
Leveraging the latest 802.11ax Wi-Fi 6 technology platform, a single CPE can cover 200 ㎡ spaces while delivering superior wireless signal strength and network bandwidth. It provides futuristic technology, higher network efficiency, faster Wi-Fi speeds, and broader coverage for an enhanced user experience.
Features:
※Equipped with 1 nano-SIM card slot
※Supports 5G: NR NSA/SA dual modes; 4G: LTE-TDD, LTE-FDD; and supports regular
broadband internet access
※Provides 1 10/100M/1000M Ethernet (WAN) interface
※Offers 3 10/100M/1000M adaptive Ethernet (LAN) interfaces, supporting
automatic MDI/MDIX
※Supports 2.4G and 5G dual bands, with automatic adjustment of wireless
transmission rate
※Supports 64/128-bit WEP encryption, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA3-SAE,
※WPA2-PSK/WPA3-SAE encryption and security mechanisms, ensuring
※the security of data transmitted in the wireless network
※Built-in Network Address Translation (NAT) function
※Supports WEB software upgrade
※Supports Web management and an easy installation wizard
※Supports relay function
※Supports DMZ
※Supports client management function
※Supports switching between wired network and mobile network
