W58RA
AOZORA
| Product features | |
| Chipset | MT7981BA+MT7976CN+MT7531AE |
| Storage | 512MB DDR3 + 128MB SPI NAND FLASH |
| Cellular network mode | 5G:NR NSA |
| 5G:NR SA | |
| 4G：LTE-TDD，LTE-FDD | |
| Carriers | Verizon / AT&T / T-Mobile / Dish (EchoStar) |
| 5G/4G module | Qualcomm X62 (or X75) |
| NR 5G SA：n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |
| NR 5G NSA：n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |
| LTE-FDD：B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | |
| LTE-TDD：B34, B38, B39, B40, B41, B42, B43, B48 | |
| LAA：B46 | |
| WiFi protocol standards | IEEE 802.11b、IEEE 802.11g、IEEE 802.11a、IEEE 802.11n、IEEE 802.11ac、IEEE 802.11ax、IEEE 802.3、IEEE 802.3u、IEEE 802.3x |
| Interface | 1 x 10/100M/1000M WAN port, supporting Auto MDI/MDIX |
| 3 x 10/100M/1000M LAN ports, support Auto MDI/MDIX | |
| 1*nano SIM slot(Hot plug) + 1*eSIM(or 1*nano SIM slot) | |
| Button | Card switching button |
| Reset (press and hold for 5 seconds) | |
| LED | 5G, 4G, WIFI signal indicator, internet access indicator |
| Antenna | 5dBi gain non-detachable antenna |
| Number of antennas | 4* 5G NR and 4G LTE antennas, 2* Wi-Fi antennas SMA |
| Power supply | Type-C 12V/1.5A |
| Wireless functions | |
| Basic functions | Wireless on/off |
| SSID Broadcast Enable/Off | |
| Channel selection: 1 ~ 13 (2.4G), 36 ~ 165 (5GHz) | |
| 2.4G bandwidth: 20MHz, 40MHz | |
| 5G bandwidth: 20MHz, 40MHz, 80MHz, 160MHz | |
| WiFi 2.4G frequency | 2412~2472MHz |
| WiFi 5G frequency | 5180~5825MHz |
| WiFi Max Rate | 3000Mbps (2.4G 2*2 MIMO up to 574Mbps, 5G 2*2 MIMO up to 2402Mbps) |
| WiFi Max Access | 128 Users |
| Power | 2.4G Actual Power: |
| 802.11b 22±1.5dBm | |
| 802.11g 21±1.5dBm | |
| 802.11n20 19±1.5dBm | |
| 802.11n40 19±1.5dBm | |
| 802.11ac40 17.5±1.5dBm | |
| 802.11ax40 17.5±1.5dBm | |
| 5G Actual Power: | |
| 802.11a 19±1.5dBm | |
| 802.11n20 18.5±1.5dBm | |
| 802.11n40 18.5±1.5dBm | |
| 802.11ac80 17.5±1.5dBm | |
| 802.11ax80 16.5±1.5dBm | |
| Cellular Data Rate (Max.) | 5G SA Sub-6: DL 2.4 Gbps; UL 900 Mbps |
| 5G NSA Sub-6: DL 3.4 Gbps; UL 550 Mbps | |
| LTE: DL 1.6 Gbps; UL 200 Mbps | |
| WCDMA: DL 42 Mbps; UL 5.76 Mbps | |
| Working mode | AP |
| Router | |
| Repeater | |
| Wireless security | Wireless MAC address filtering |
| 64/128 bit WEP encryption | |
| WPA-PSK、WPA2-PSK、WPA3-SAE、WPA/WPA2-PSK 、WPA2-PSK/WPA3-SAE | |
| WPS（PBC） | |
| Other features | Wireless host status display |
| Wireless site scanning | |
| Seamless roaming between nodes | |
| Seamless roaming between bands | |
| WiFi settings | WiFi basic settings (dual-band integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment). |
| Advanced settings (wireless client isolation, 802.11h, WMM multimedia acceleration). | |
| Multiple SSIDs (SSIDs, encryption methods, PWDs, and encryption algorithms) | |
| Software functions | |
| Network status | Register network information: Click to directly configure APN dialing information |
| Network Scan Information: Click each to scan the network signal quality of the current location and provide optimal location detection | |
| System status view: device information (power-on duration, system time, software version, hardware version), 4/5G dial-up information, LAN status, WIFI information, IPv6 information, and Mesh node information | |
| Mesh node information: Mesh networking node information and Mesh networking tutorial tips | |
| Client information: You can directly pull a client into the blacklist | |
| Wifi information: You can directly jump to configure WiFi information | |
| Real-time Internet access rate display, WAN IP address display, software version information | |
| Network settings | Data Switch, Roaming Switch, Mode Selection, Default APN Information, and APN Manual Configuration |
| FAILOVER switches: PPPOE, DHCP, and static | |
| 4G/5G band locking | |
| Wifi settings | Wifi name and password, wifi timing, channel bandwidth setting, power regulation, bridging function, OFDMA |
| SMS feature | SMS sending and receiving, SMS center settings |
| Guest network | Configure the SSID, rate limit, and startup time limit of the guest network |
| Parental controls | Online device display, online time, restricted Internet time period, URL filtering configuration |
| Advanced settings | Working Mode, SIM PIN, Mobile Data Switch, Bandwidth Control, Sleep Mode, LED Control, Filter MAC Address, Firewall, Static Routing, DDNS, Virtual Server, DMZ Host, UPnP, TR069 Settings |
| System settings | System Status, Time Setting, Password Management, Configuration Management, Firmware Upgrade, Scheduled Restart, System Log, LAN Setting, DHCP Binding, Reboot & Reset, Remote Management |
| Other | |
| Environment | Operating temperature: -20°C to 50°C |
| Storage temperature: -40°C to 70°C | |
| Operating humidity: 10% to 90% RH non-condensing | |
| Storage humidity: 5% to 95% RH non-condensing | |
| Dimensions | 166*110*29mm |
| Product features | |
| Chipset | MT7981BA+MT7976CN+MT7531AE |
| Storage | 512MB DDR3 + 128MB SPI NAND FLASH |
| Cellular network mode | 5G:NR NSA |
| 5G:NR SA | |
| 4G：LTE-TDD，LTE-FDD | |
| Carriers | Verizon / AT&T / T-Mobile / Dish (EchoStar) |
| 5G/4G module | Qualcomm X62 (or X75) |
| NR 5G SA：n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |
| NR 5G NSA：n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |
| LTE-FDD：B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | |
| LTE-TDD：B34, B38, B39, B40, B41, B42, B43, B48 | |
| LAA：B46 | |
| WiFi protocol standards | IEEE 802.11b、IEEE 802.11g、IEEE 802.11a、IEEE 802.11n、IEEE 802.11ac、IEEE 802.11ax、IEEE 802.3、IEEE 802.3u、IEEE 802.3x |
| Interface | 1 x 10/100M/1000M WAN port, supporting Auto MDI/MDIX |
| 3 x 10/100M/1000M LAN ports, support Auto MDI/MDIX | |
| 1*nano SIM slot(Hot plug) + 1*eSIM(or 1*nano SIM slot) | |
| Button | Card switching button |
| Reset (press and hold for 5 seconds) | |
| LED | 5G, 4G, WIFI signal indicator, internet access indicator |
| Antenna | 5dBi gain non-detachable antenna |
| Number of antennas | 4* 5G NR and 4G LTE antennas, 2* Wi-Fi antennas SMA |
| Power supply | Type-C 12V/1.5A |
| Wireless functions | |
| Basic functions | Wireless on/off |
| SSID Broadcast Enable/Off | |
| Channel selection: 1 ~ 13 (2.4G), 36 ~ 165 (5GHz) | |
| 2.4G bandwidth: 20MHz, 40MHz | |
| 5G bandwidth: 20MHz, 40MHz, 80MHz, 160MHz | |
| WiFi 2.4G frequency | 2412~2472MHz |
| WiFi 5G frequency | 5180~5825MHz |
| WiFi Max Rate | 3000Mbps (2.4G 2*2 MIMO up to 574Mbps, 5G 2*2 MIMO up to 2402Mbps) |
| WiFi Max Access | 128 Users |
| Power | 2.4G Actual Power: |
| 802.11b 22±1.5dBm | |
| 802.11g 21±1.5dBm | |
| 802.11n20 19±1.5dBm | |
| 802.11n40 19±1.5dBm | |
| 802.11ac40 17.5±1.5dBm | |
| 802.11ax40 17.5±1.5dBm | |
| 5G Actual Power: | |
| 802.11a 19±1.5dBm | |
| 802.11n20 18.5±1.5dBm | |
| 802.11n40 18.5±1.5dBm | |
| 802.11ac80 17.5±1.5dBm | |
| 802.11ax80 16.5±1.5dBm | |
| Cellular Data Rate (Max.) | 5G SA Sub-6: DL 2.4 Gbps; UL 900 Mbps |
| 5G NSA Sub-6: DL 3.4 Gbps; UL 550 Mbps | |
| LTE: DL 1.6 Gbps; UL 200 Mbps | |
| WCDMA: DL 42 Mbps; UL 5.76 Mbps | |
| Working mode | AP |
| Router | |
| Repeater | |
| Wireless security | Wireless MAC address filtering |
| 64/128 bit WEP encryption | |
| WPA-PSK、WPA2-PSK、WPA3-SAE、WPA/WPA2-PSK 、WPA2-PSK/WPA3-SAE | |
| WPS（PBC） | |
| Other features | Wireless host status display |
| Wireless site scanning | |
| Seamless roaming between nodes | |
| Seamless roaming between bands | |
| WiFi settings | WiFi basic settings (dual-band integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment). |
| Advanced settings (wireless client isolation, 802.11h, WMM multimedia acceleration). | |
| Multiple SSIDs (SSIDs, encryption methods, PWDs, and encryption algorithms) | |
| Software functions | |
| Network status | Register network information: Click to directly configure APN dialing information |
| Network Scan Information: Click each to scan the network signal quality of the current location and provide optimal location detection | |
| System status view: device information (power-on duration, system time, software version, hardware version), 4/5G dial-up information, LAN status, WIFI information, IPv6 information, and Mesh node information | |
| Mesh node information: Mesh networking node information and Mesh networking tutorial tips | |
| Client information: You can directly pull a client into the blacklist | |
| Wifi information: You can directly jump to configure WiFi information | |
| Real-time Internet access rate display, WAN IP address display, software version information | |
| Network settings | Data Switch, Roaming Switch, Mode Selection, Default APN Information, and APN Manual Configuration |
| FAILOVER switches: PPPOE, DHCP, and static | |
| 4G/5G band locking | |
| Wifi settings | Wifi name and password, wifi timing, channel bandwidth setting, power regulation, bridging function, OFDMA |
| SMS feature | SMS sending and receiving, SMS center settings |
| Guest network | Configure the SSID, rate limit, and startup time limit of the guest network |
| Parental controls | Online device display, online time, restricted Internet time period, URL filtering configuration |
| Advanced settings | Working Mode, SIM PIN, Mobile Data Switch, Bandwidth Control, Sleep Mode, LED Control, Filter MAC Address, Firewall, Static Routing, DDNS, Virtual Server, DMZ Host, UPnP, TR069 Settings |
| System settings | System Status, Time Setting, Password Management, Configuration Management, Firmware Upgrade, Scheduled Restart, System Log, LAN Setting, DHCP Binding, Reboot & Reset, Remote Management |
| Other | |
| Environment | Operating temperature: -20°C to 50°C |
| Storage temperature: -40°C to 70°C | |
| Operating humidity: 10% to 90% RH non-condensing | |
| Storage humidity: 5% to 95% RH non-condensing | |
| Dimensions | 166*110*29mm |

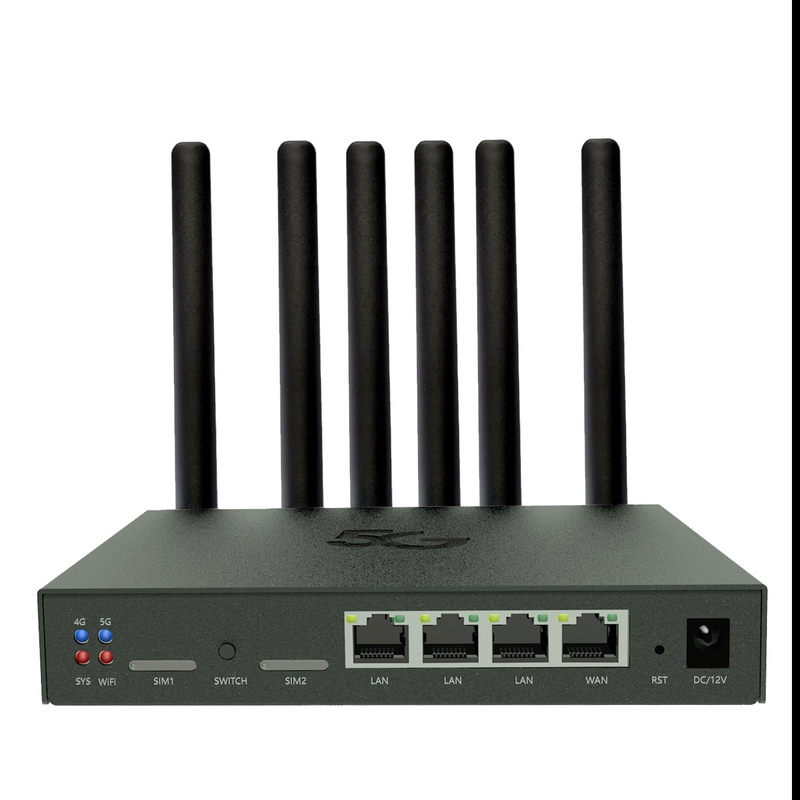

The AOZORA W58RA is a smart wireless access router (CPE) equipped with 5G and Wi-Fi 6, developed on a brand-new hardware platform to meet the growing demands of mobile terminals and IoT nodes, significantly enhancing users' wireless internet experience.
The CPE fully supports NSA/SA dual-mode compatibility, meeting China's Ministry of Industry and Information Technology (MIIT) telecom product network access standards. Itoffers gigabit-level fiber-optic access capabilities to satisfy bandwidth requirements forVR/AR/4K/8K video streaming.
Leveraging the latest 802.11ax Wi-Fi 6 technology platform, a single CPE can cover 200 ㎡ spaces while delivering superior wireless signal strength and network bandwidth. It provides futuristic technology, higher network efficiency, faster Wi-Fi speeds, and broader coverage for an enhanced user experience.
Features:
※ Equipped with 1*nano SIM slot(Hot plug) + 1*eSIM(or 1*nano SIM slot)
※ Supports 5G: NR NSA/SA dual modes; 4G: LTE-TDD, LTE-FDD; and supports regular broadband internet access
※ Provides 1 10/100M/1000M Ethernet (WAN) interface
※ Offers 3 10/100M/1000M adaptive Ethernet (LAN) interfaces, supporting automatic MDI/MDIX
※ Supports 2.4G and 5G dual bands, with automatic adjustment of wireless transmission rate
※ Supports 64/128-bit WEP encryption, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA3-SAE,
※ WPA2-PSK/WPA3-SAE encryption and security mechanisms, ensuring
※ the security of data transmitted in the wireless network
※ Built-in Network Address Translation (NAT) function
※ Supports WEB software upgrade
※ Supports Web management and an easy installation wizard
※ Supports relay function
※ Supports DMZ
※ Supports client management function
※ Supports switching between wired network and mobile network
