| Product features |
| Chipset |
MT7981BA+MT7976CN+MT7531AE |
| Storage |
256MB DDR3 + 128MB SPI NAND FLASH |
| Cellular network mode |
5G:NR NSA |
| 5G:NR SA |
| 4G：LTE-TDD，LTE-FDD |
| Carriers |
Verizon / AT&T / T-Mobile / Dish (EchoStar) |
| 5G/4G module |
Qualcomm X62 (or X75) |
| NR 5G SA：n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 |
| NR 5G NSA：n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 |
| LTE-FDD：B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 |
| LTE-TDD：B34, B38, B39, B40, B41, B42, B43, B48 |
| LAA：B46 |
| WiFi protocol standards |
IEEE 802.11b、IEEE 802.11g、IEEE 802.11a、IEEE 802.11n、IEEE 802.11ac、IEEE 802.11ax、IEEE 802.3、IEEE 802.3u、IEEE 802.3x |
| Interface |

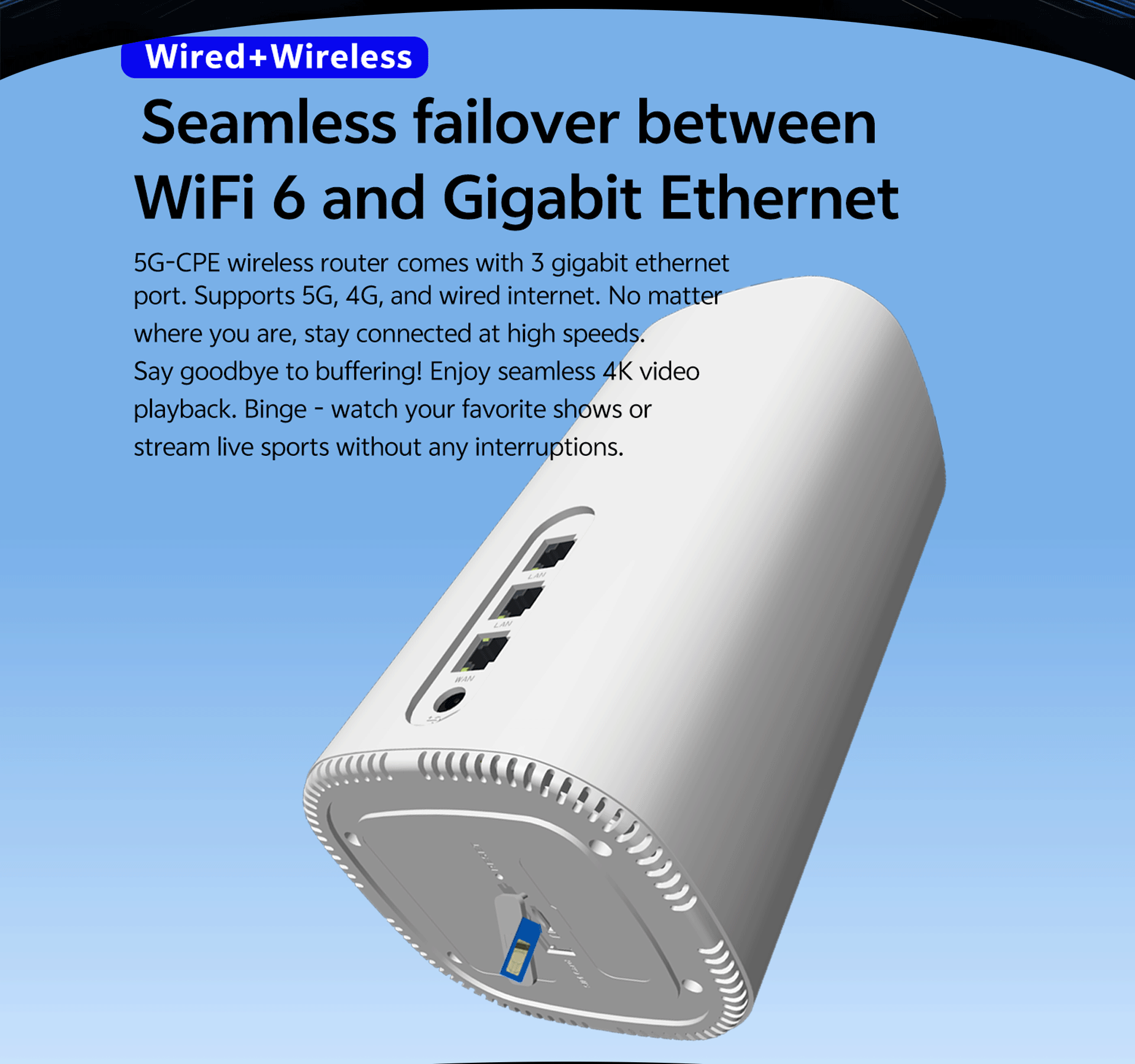

1 x 10/100M/1000M WAN port, supporting Auto MDI/MDIX |
| 2 x 10/100M/1000M LAN ports, support Auto MDI/MDIX |
| 1* nano SIM slots(Hot plug), 1* eSIM |
| Button |
Power(power on/off) |
| Reset (press and hold for 5 seconds) |
| LED |
5G, 4G, WIFI signal indicator, internet indicator |
| Antenna |
5dBi gain non-detachable antenna |
| Number of antennas |

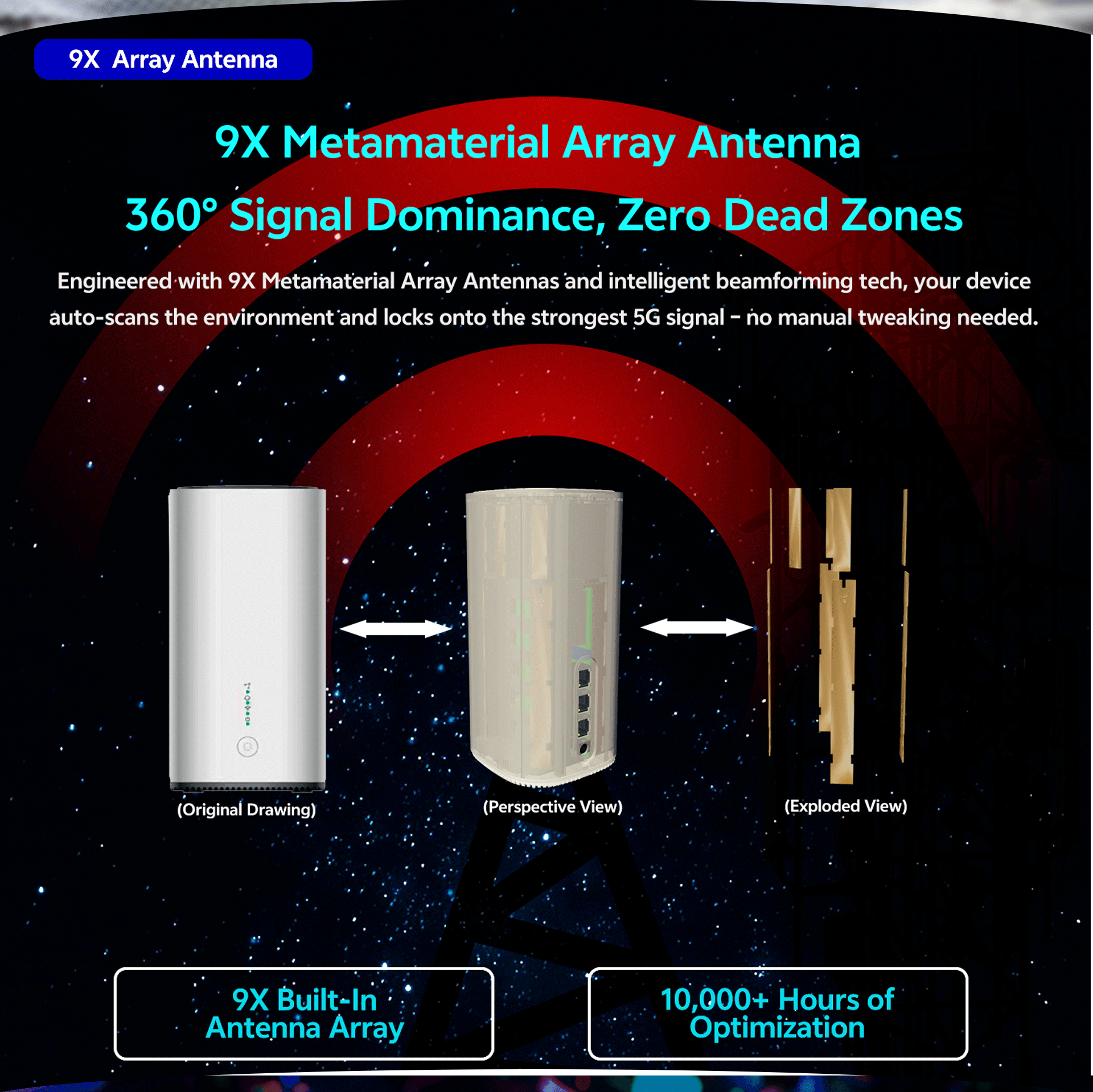

4* 5G NR and 4G LTE antennas, 5* AP antennas |
| Power supply |
Type-C 5V/3A |
| 20000mAh battery |
| USB 2.0, 5V/2A power output |
| Wireless functions |
| Basic functions |
Wireless on/off |
| SSID Broadcast Enable/Off |
| Channel selection: 1 ~ 13 (2.4G), 36 ~ 165 (5GHz) |
| 2.4G bandwidth: 20MHz, 40MHz |
| 5G bandwidth: 20MHz, 40MHz, 80MHz, 160MHz |

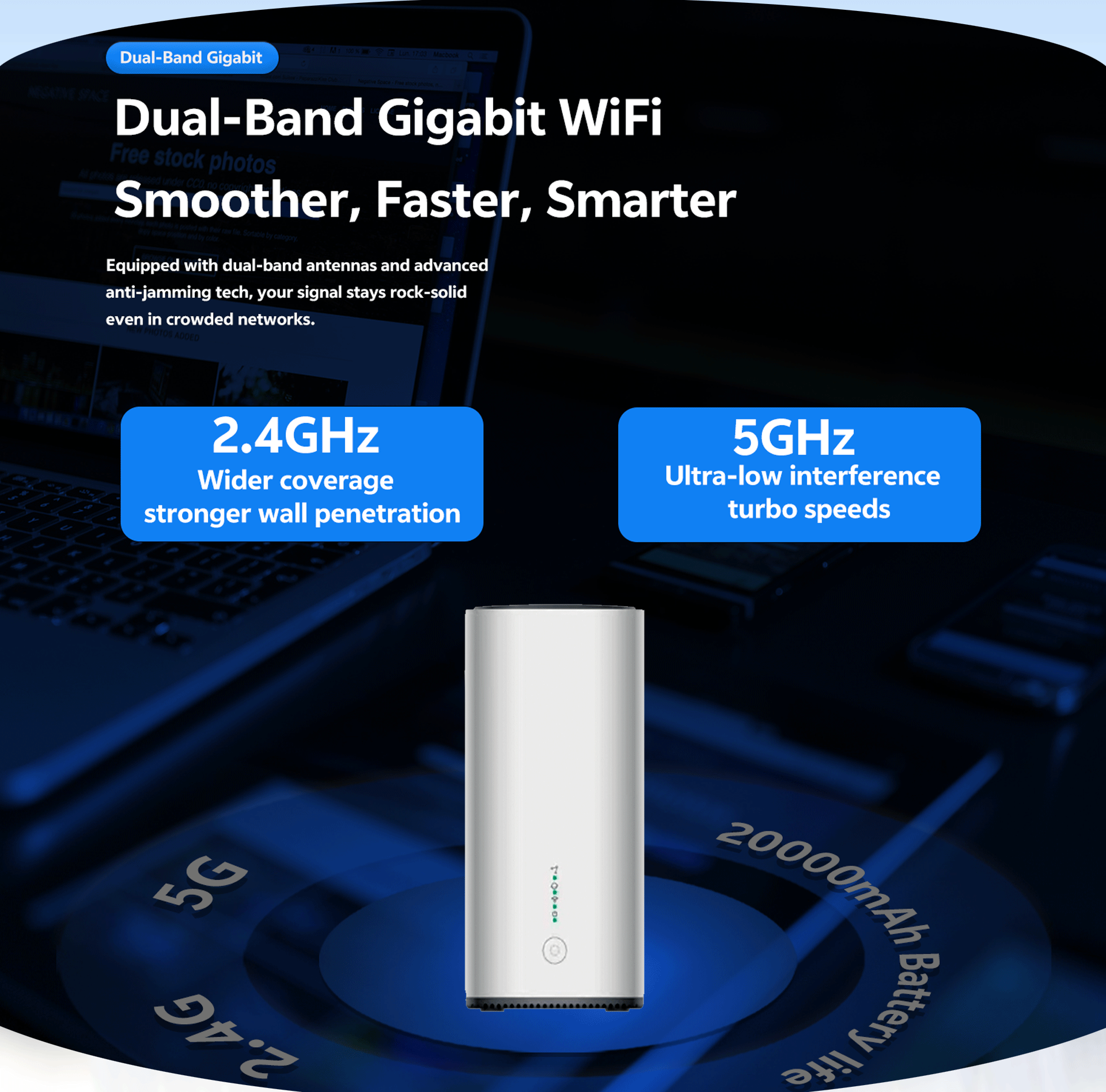

| WiFi 2.4G frequency |
2412~2472MHz |
| WiFi 5G frequency |
5180~5825MHz |
| WiFi Max Rate |

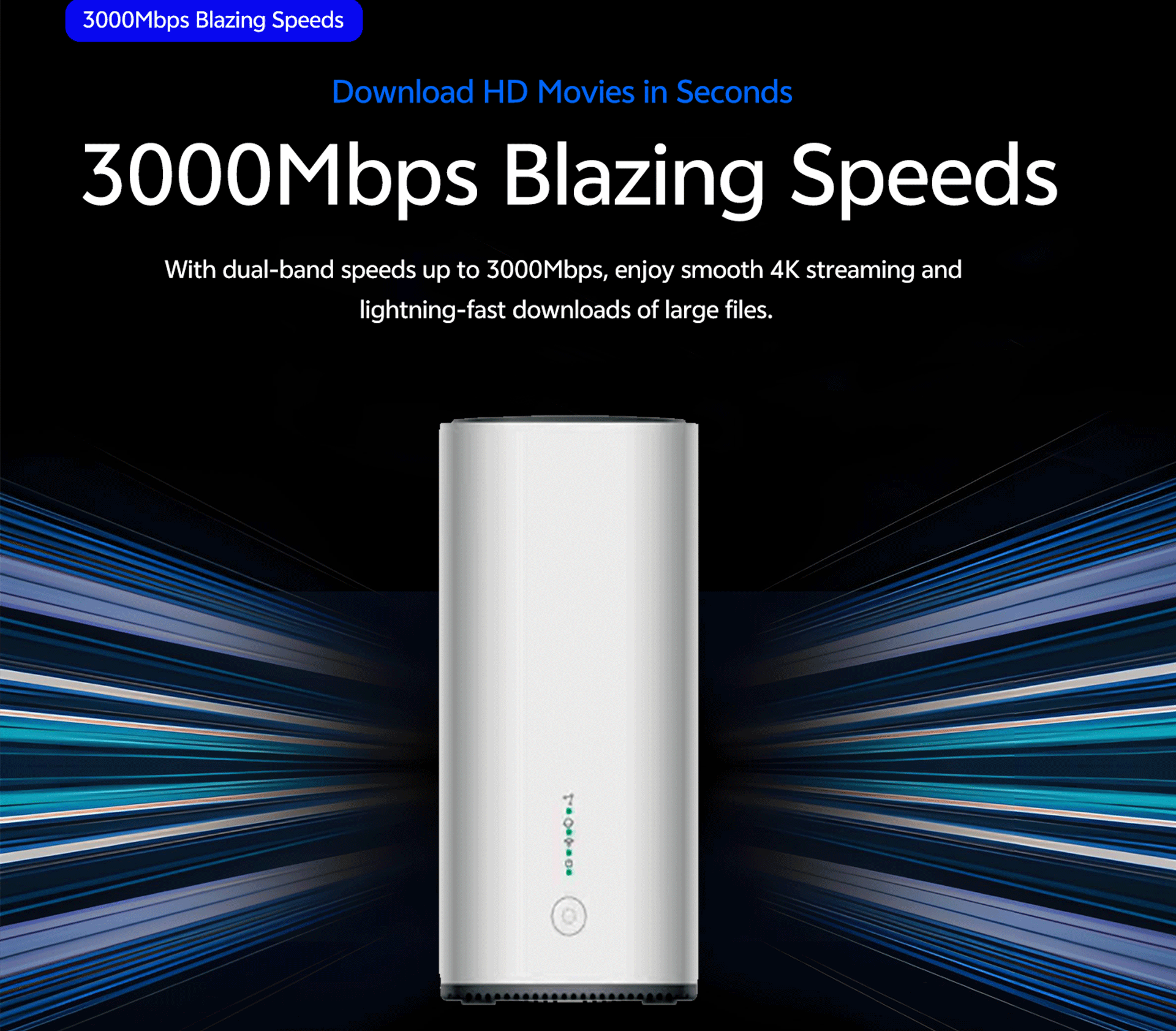

3000Mbps (2.4G 2*2 MIMO up to 574Mbps, 5G 2*2 MIMO up to 2402Mbps) |
| WiFi Max Access |
128 Users |
| Power |
2.4G Actual Power: |
| 802.11b 22±1.5dBm |
| 802.11g 21±1.5dBm |
| 802.11n20 19±1.5dBm |
| 802.11n40 19±1.5dBm |
| 802.11ac40 17.5±1.5dBm |
| 802.11ax40 17.5±1.5dBm |
| 5G Actual Power: |
| 802.11a 19±1.5dBm |
| 802.11n20 18.5±1.5dBm |
| 802.11n40 18.5±1.5dBm |
| 802.11ac80 17.5±1.5dBm |
| 802.11ax80 16.5±1.5dBm |
| Cellular Data Rate (Max.) |
5G SA Sub-6: DL 2.4 Gbps; UL 900 Mbps |
| 5G NSA Sub-6: DL 3.4 Gbps; UL 550 Mbps |
| LTE: DL 1.6 Gbps; UL 200 Mbps |
| WCDMA: DL 42 Mbps; UL 5.76 Mbps |
| Working mode |
AP |
| Router |
| Repeater |
| Wireless security |
Wireless MAC address filtering |
| 64/128 bit WEP encryption |

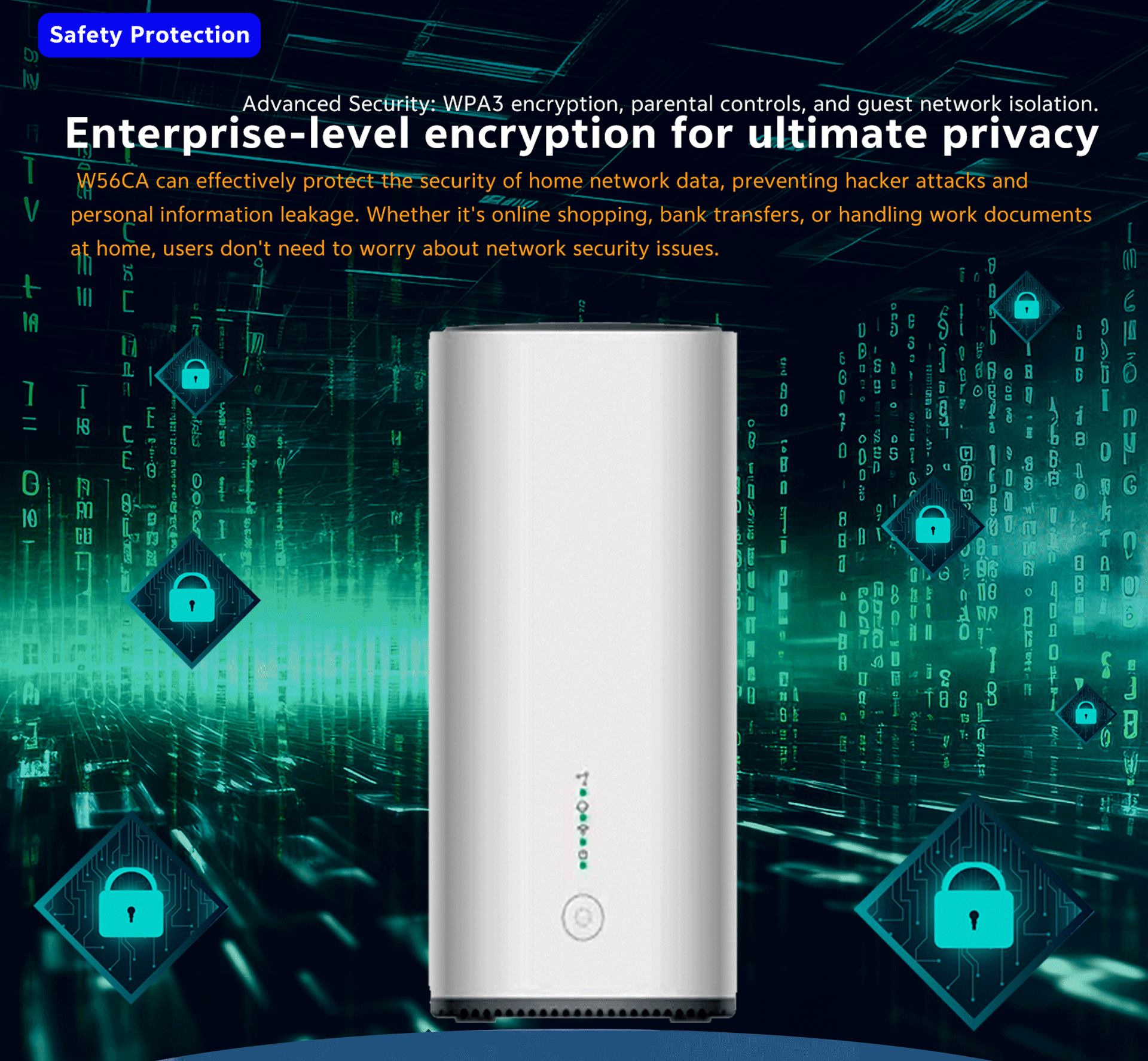

| WPA-PSK、WPA2-PSK、WPA3-SAE、WPA/WPA2-PSK 、WPA2-PSK/WPA3-SAE |
| WPS（PBC） |
| Other features |
Wireless host status display |
| Wireless site scanning |
| Seamless roaming between nodes |
| Seamless roaming between bands |
| WiFi settings |
WiFi basic settings (dual-band integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment). |
| Advanced settings (wireless client isolation, 802.11h, WMM multimedia acceleration). |
| Multiple SSIDs (SSIDs, encryption methods, PWDs, and encryption algorithms) |
| Software functions |
| Network status |
Register network information: Click to directly configure APN dialing information |
| Network Scan Information: Click each to scan the network signal quality of the current location and provide optimal location detection |
| System status view: device information (power-on duration, system time, software version, hardware version), 4/5G dial-up information, LAN status, WIFI information, IPv6 information, and Mesh node information |
| Mesh node information: Mesh networking node information and Mesh networking tutorial tips |
| Client information: You can directly pull a client into the blacklist |
| Wifi information: You can directly jump to configure WiFi information |
| Real-time Internet access rate display, WAN IP address display, software version information |
| Network settings |
Data Switch, Roaming Switch, Mode Selection, Default APN Information, and APN Manual Configuration |
| FAILOVER switches: PPPOE, DHCP, and static |
| 4G/5G band locking |
| Wifi settings |
Wifi name and password, wifi timing, channel bandwidth setting, power regulation, bridging function, OFDMA |
| SMS feature |
SMS sending and receiving, SMS center settings |
| Guest network |
Configure the SSID, rate limit, and startup time limit of the guest network |
| Parental controls |
Online device display, online time, restricted Internet time period, URL filtering configuration |
| Advanced settings |
Working Mode, SIM PIN, Mobile Data Switch, Bandwidth Control, Sleep Mode, LED Control, Filter MAC Address, Firewall, Static Routing, DDNS, Virtual Server, DMZ Host, UPnP, TR069 Settings |
| System settings |
System Status, Time Setting, Password Management, Configuration Management, Firmware Upgrade, Scheduled Restart, System Log, LAN Setting, DHCP Binding, Reboot & Reset, Remote Management |
| Other |
| Environment |
Operating temperature: -20°C to 50°C |
| Storage temperature: -40°C to 70°C |
| Operating humidity: 10% to 90% RH non-condensing |
| Storage humidity: 5% to 95% RH non-condensing |
| Dimensions |

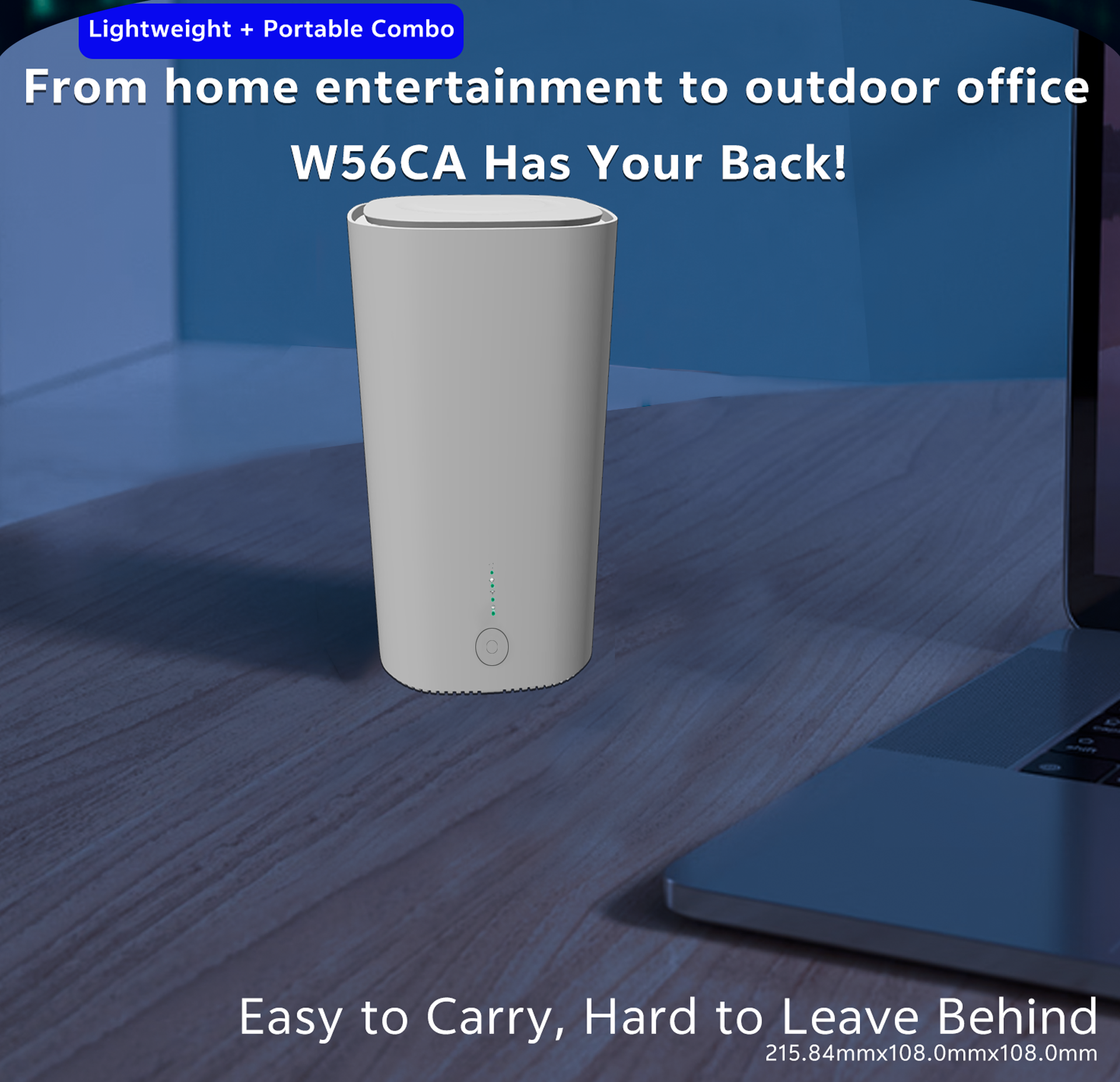

215.8*108*108mm |
