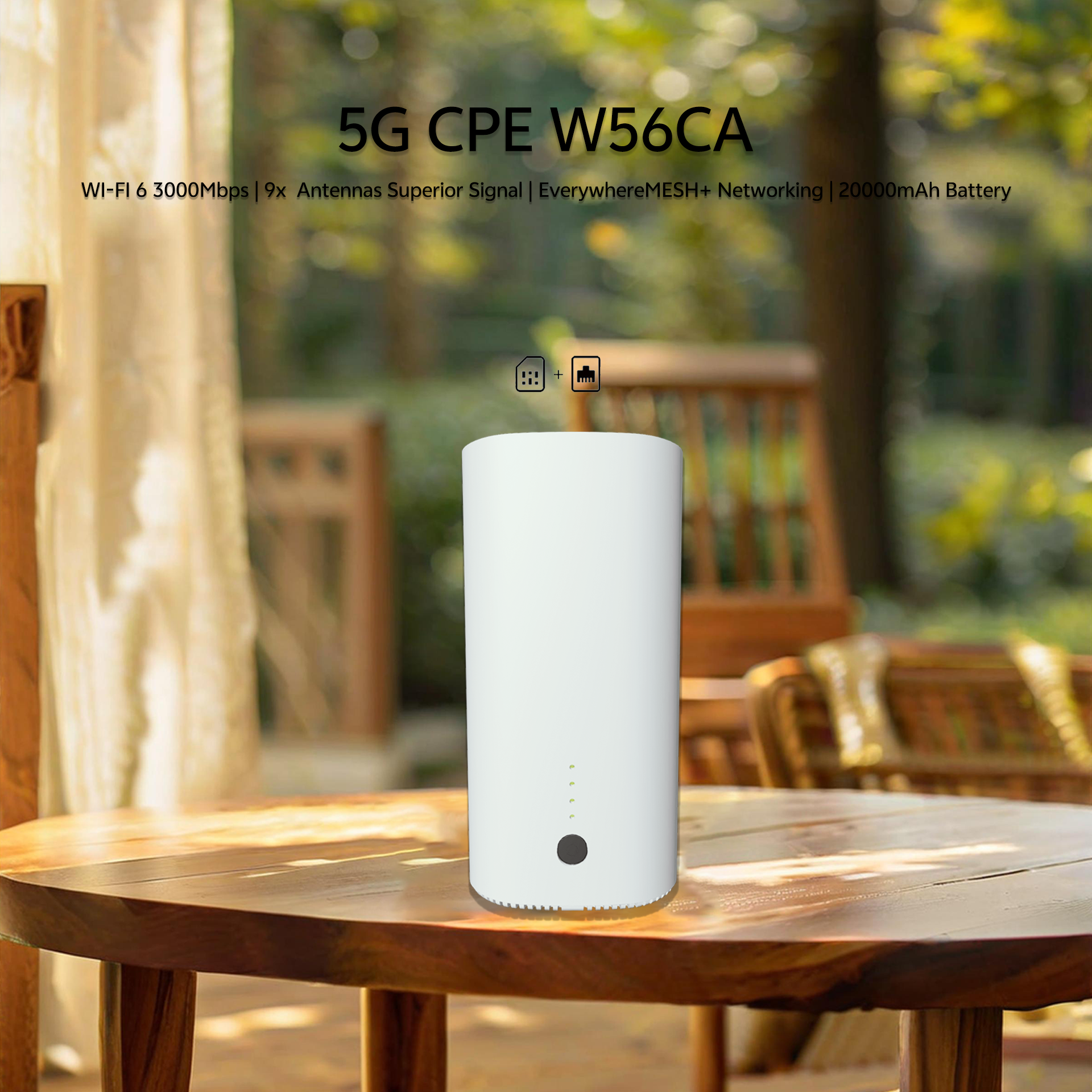

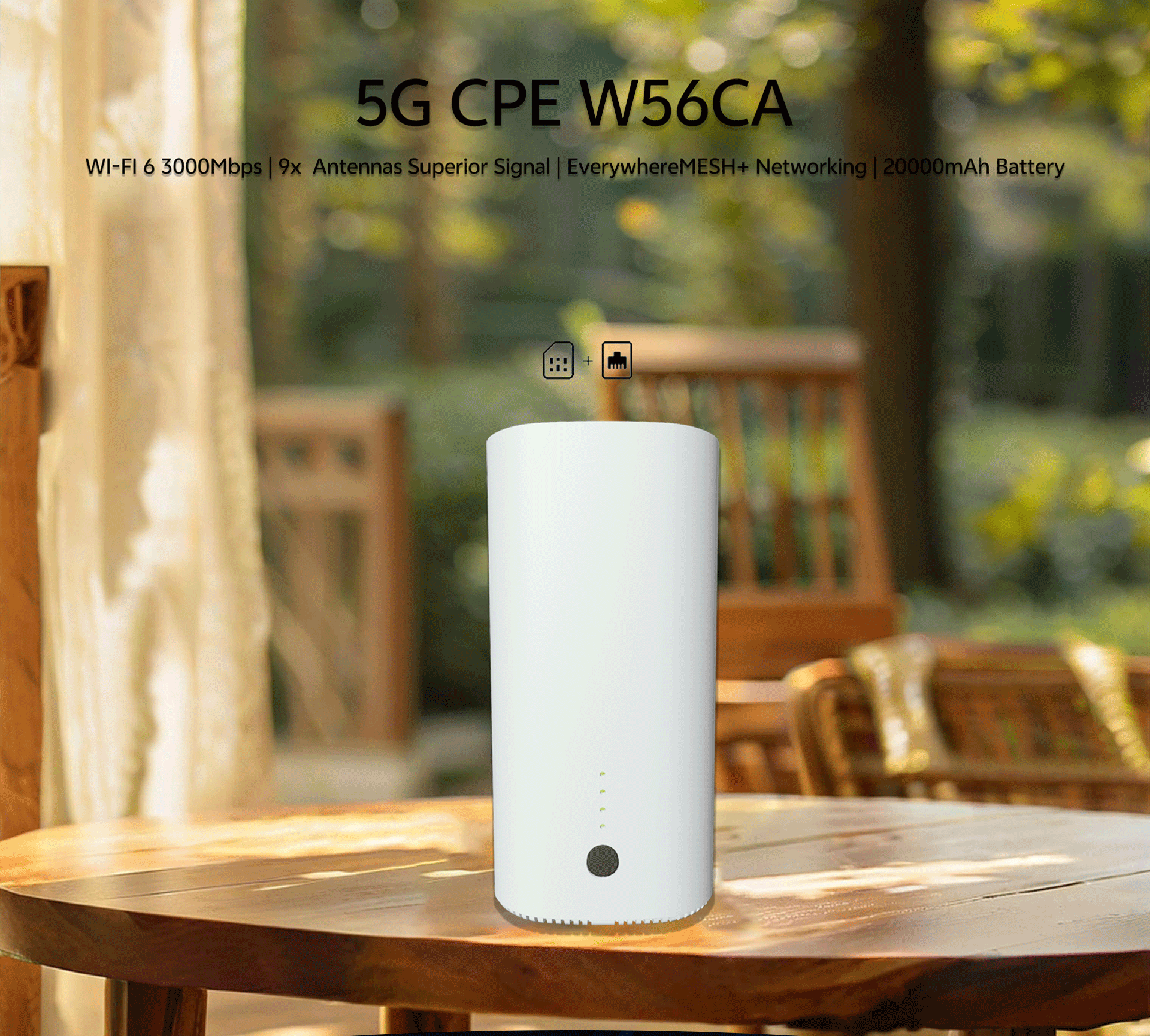

W56CA
AOZORA
Wireless features | ||
Basic functions | Wireless on/off SSID Broadcast Enable/Off Channel selection: 1 ~ 13 (2.4G). 36 ~ 165 (5GHz) 2.4G bandwidth: 20MHz, 40MHz 5G bandwidth: 20MHz, 40MHz, 80MHz, 160MHz | |
2.4G frequency | 2412~2472MHz | |
5G frequency | 5180~5825MHz | |
Wireless transmission speed | 2.4G 2TR up to 574Mbps 5G 2T2R up to 2402Mbps | |
5G/4G data rates | 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) LTE : Down 1.0 Gbps； UP 200 Mbps | |
Working mode | AP Router Repeater | |
Wireless security | Wireless MAC address filtering 64/128 bit WEP encryption WPA-PSK、WPA2-PSK、WPA3-SAE、WPA/WPA2-PSK 、WPA2-PSK/WPA3-SAE WPS（PBC） | |
Other features | Wireless host status display Wireless site scanning Seamless roaming between nodes Seamless roaming between bands | |
WiFi settings | WiFi basic settings (dual-band integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment). Advanced settings (wireless client isolation, 802.11h, WMM multimedia acceleration). Multiple SSIDs (SSIDs, encryption methods, PWDs, and encryption algorithms) | |
Software features | |
Network status | Register network information: Click to directly configure APN dialing information Network Scan Information: Click each to scan the network signal quality of the current location and provide optimal location detection System status view: device information (power-on duration, system time, software version, hardware version), 4/5G dial-up information, LAN status, WIFI information, IPv6 information, and Mesh node information Mesh node information: Mesh networking node information and Mesh networking tutorial tips Client information: You can directly pull a client into the blacklist Wifi information: You can directly jump to configure WiFi information Real-time Internet access rate display, WAN IP address display, software version information |
Network settings | Data Switch, Roaming Switch, Mode Selection, Default APN Information, and APN Manual Configuration FAILOVER switches: PPPOE, DHCP, and static 4G/5G band locking |
Wifi settings | Wifi name and password, wifi timing, channel bandwidth setting, power regulation, bridging function, OFDMA |
SMS feature | SMS sending and receiving, SMS center settings |
Guest network | Configure the SSID, rate limit, and startup time limit of the guest network |
parental controls | Online device display, online time, restricted Internet time period, URL filtering configuration |
Advanced settings | Working Mode, SIM PIN, Mobile Data Switch, Bandwidth Control, Sleep Mode, LED Control, Filter MAC Address, Firewall, Static Routing, DDNS, Virtual Server, DMZ Host, UPnP, TR069 Settings |
System settings | System Status, Time Setting, Password Management, Configuration Management, Firmware Upgrade, Scheduled Restart, System Log, LAN Setting, DHCP Binding, Reboot & Reset, Remote Management |
other | |
Use environment | Operating temperature: -20°C to 50°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90% RH non-condensing Storage humidity: 5% to 95% RH non-condensing |
Wireless features | ||
Basic functions | Wireless on/off SSID Broadcast Enable/Off Channel selection: 1 ~ 13 (2.4G). 36 ~ 165 (5GHz) 2.4G bandwidth: 20MHz, 40MHz 5G bandwidth: 20MHz, 40MHz, 80MHz, 160MHz | |
2.4G frequency | 2412~2472MHz | |
5G frequency | 5180~5825MHz | |
Wireless transmission speed | 2.4G 2TR up to 574Mbps 5G 2T2R up to 2402Mbps | |
5G/4G data rates | 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) LTE : Down 1.0 Gbps； UP 200 Mbps | |
Working mode | AP Router Repeater | |
Wireless security | Wireless MAC address filtering 64/128 bit WEP encryption WPA-PSK、WPA2-PSK、WPA3-SAE、WPA/WPA2-PSK 、WPA2-PSK/WPA3-SAE WPS（PBC） | |
Other features | Wireless host status display Wireless site scanning Seamless roaming between nodes Seamless roaming between bands | |
WiFi settings | WiFi basic settings (dual-band integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment). Advanced settings (wireless client isolation, 802.11h, WMM multimedia acceleration). Multiple SSIDs (SSIDs, encryption methods, PWDs, and encryption algorithms) | |
Software features | |
Network status | Register network information: Click to directly configure APN dialing information Network Scan Information: Click each to scan the network signal quality of the current location and provide optimal location detection System status view: device information (power-on duration, system time, software version, hardware version), 4/5G dial-up information, LAN status, WIFI information, IPv6 information, and Mesh node information Mesh node information: Mesh networking node information and Mesh networking tutorial tips Client information: You can directly pull a client into the blacklist Wifi information: You can directly jump to configure WiFi information Real-time Internet access rate display, WAN IP address display, software version information |
Network settings | Data Switch, Roaming Switch, Mode Selection, Default APN Information, and APN Manual Configuration FAILOVER switches: PPPOE, DHCP, and static 4G/5G band locking |
Wifi settings | Wifi name and password, wifi timing, channel bandwidth setting, power regulation, bridging function, OFDMA |
SMS feature | SMS sending and receiving, SMS center settings |
Guest network | Configure the SSID, rate limit, and startup time limit of the guest network |
parental controls | Online device display, online time, restricted Internet time period, URL filtering configuration |
Advanced settings | Working Mode, SIM PIN, Mobile Data Switch, Bandwidth Control, Sleep Mode, LED Control, Filter MAC Address, Firewall, Static Routing, DDNS, Virtual Server, DMZ Host, UPnP, TR069 Settings |
System settings | System Status, Time Setting, Password Management, Configuration Management, Firmware Upgrade, Scheduled Restart, System Log, LAN Setting, DHCP Binding, Reboot & Reset, Remote Management |
other | |
Use environment | Operating temperature: -20°C to 50°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90% RH non-condensing Storage humidity: 5% to 95% RH non-condensing |

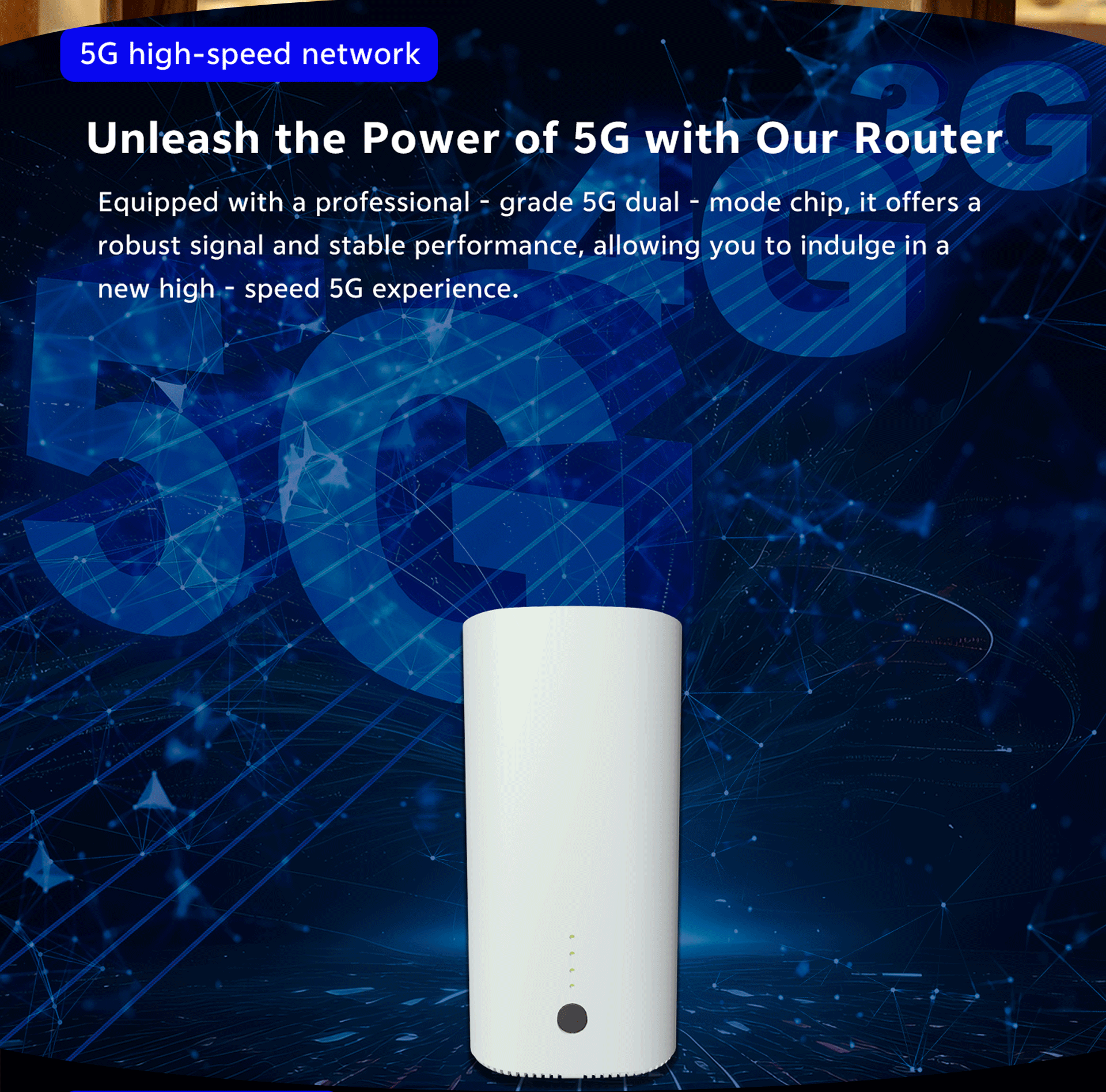

Dual-Mode 5G Support
There are 1 nano-SIM card slots.Supports NSA/SA dual-mode 5G, compatible with 4G LTE-TDD and LTE-FDD, providing extensive network coverage and high-speed connectivity.
Wi-Fi 6 Technology
Utilizes the latest 802.11ax Wi-Fi 6 technology, offering higher network efficiency, faster Wi-Fi speeds, and greater coverage, with a single device covering up to 200 square meters.
Gigabit Fiber Access
Supports gigabit-level fiber access, meeting the high bandwidth requirements of VR/AR and 4K/8K online video streaming.

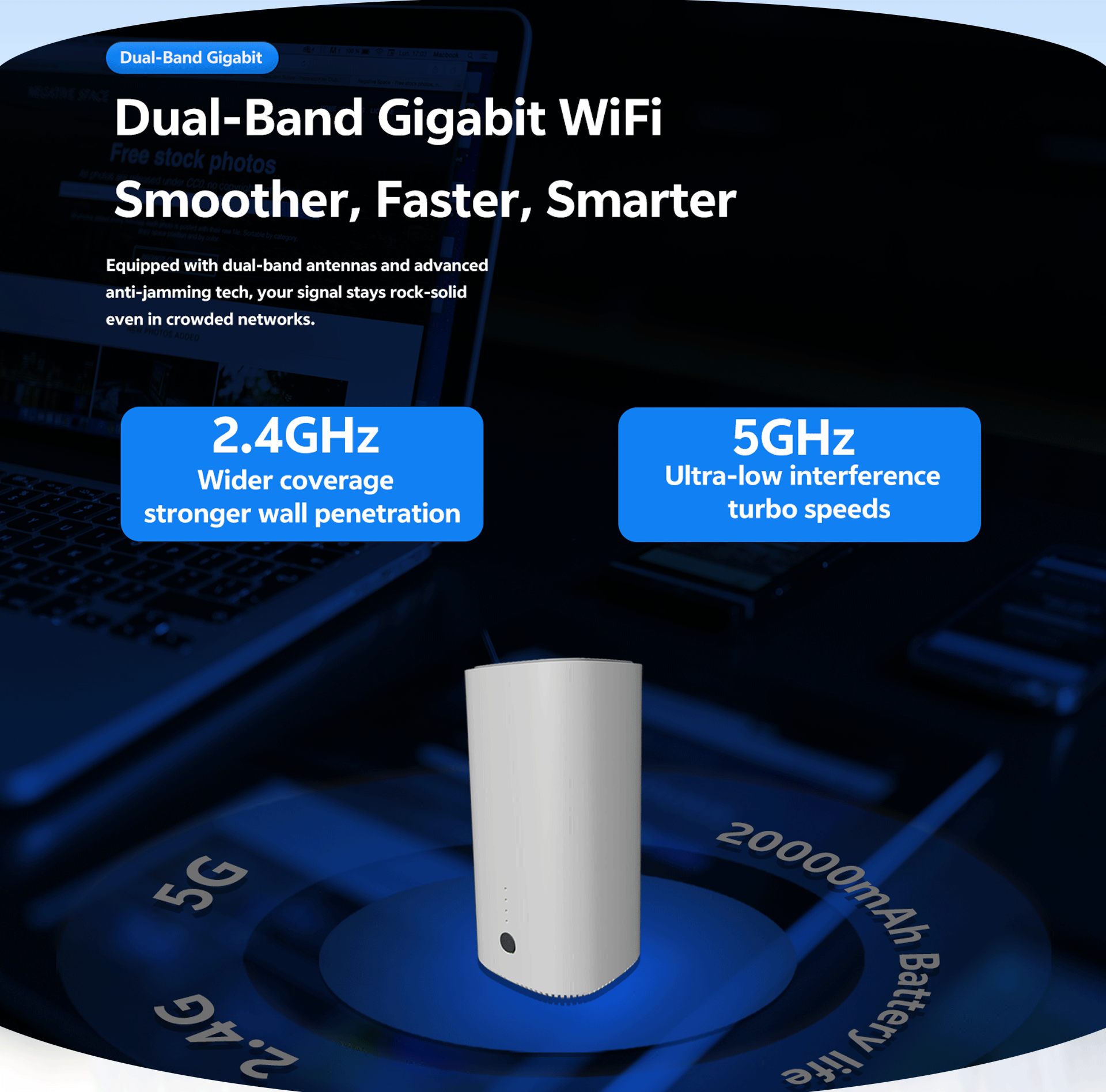

Dual-Band Support
Supports 2.4GHz and 5GHz dual-band, with automatic wireless transmission rate adjustment for stable network connections.

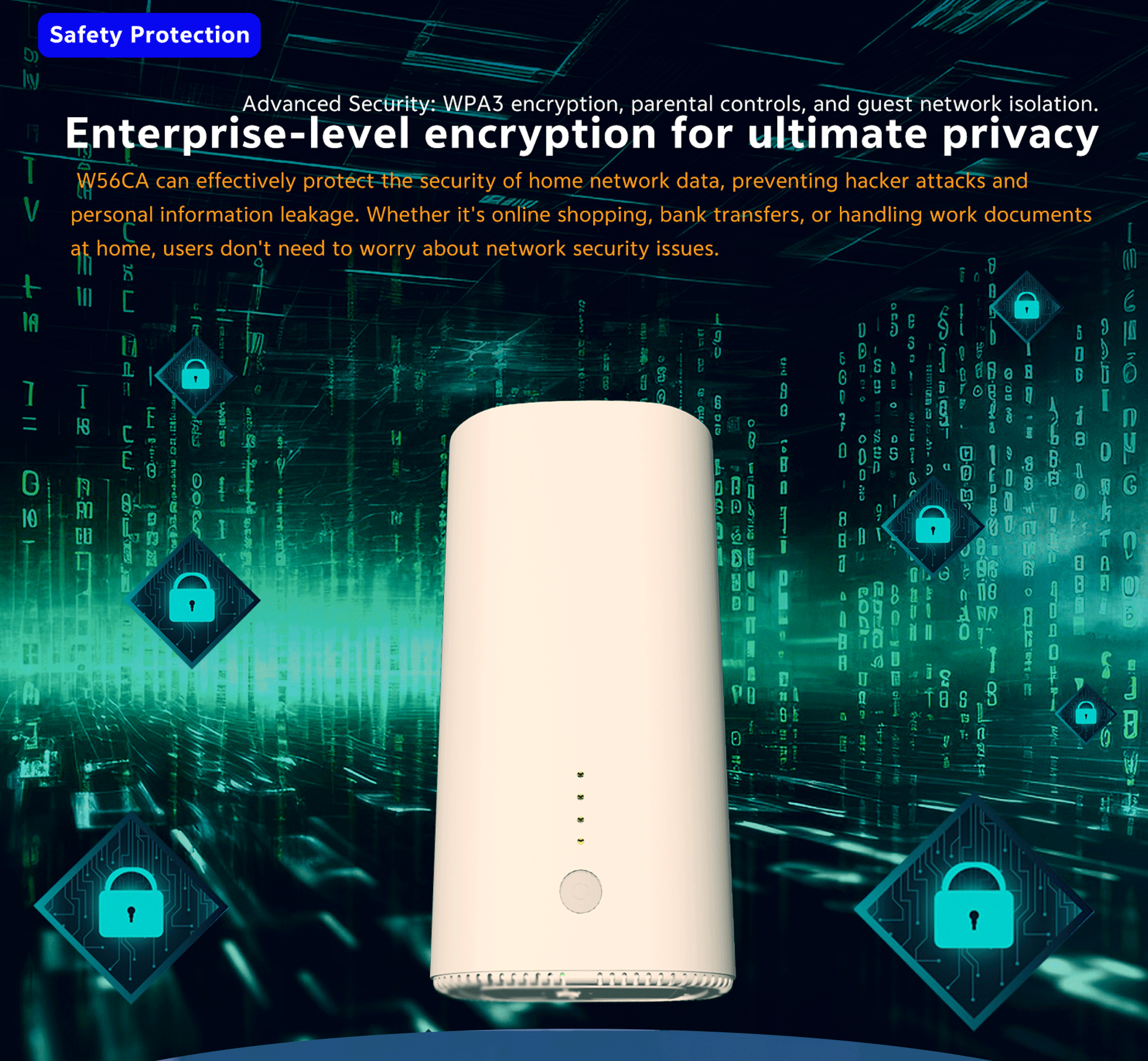

High Security
Supports advanced encryption protocols like WPA3-SAE and WPA2-PSK, ensuring secure data transmission over wireless networks.

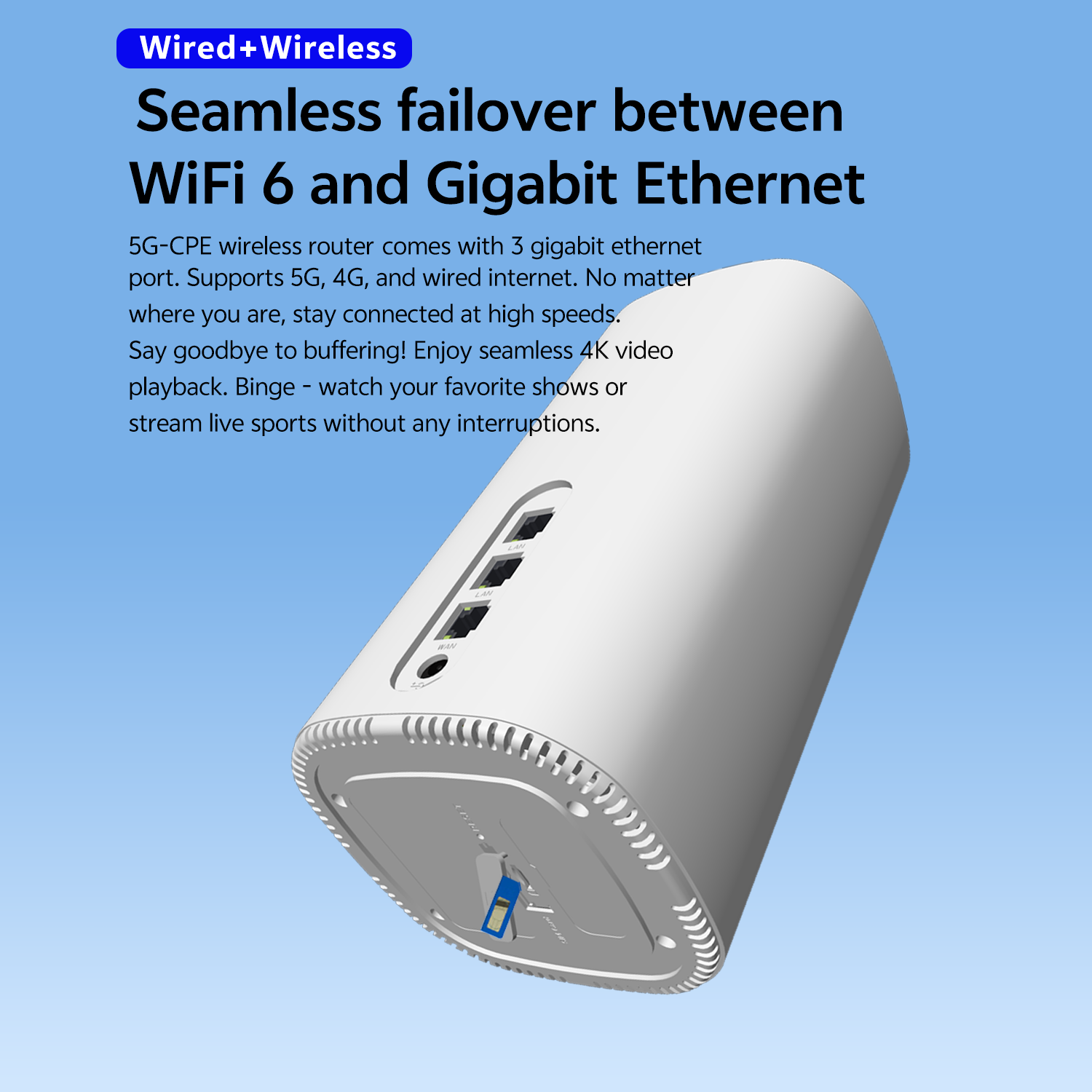

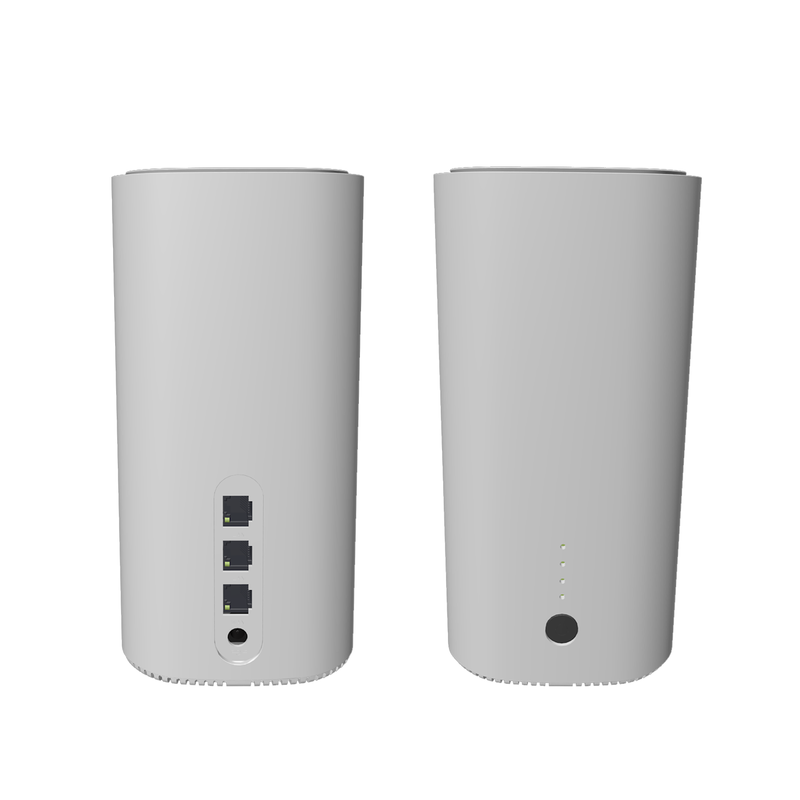

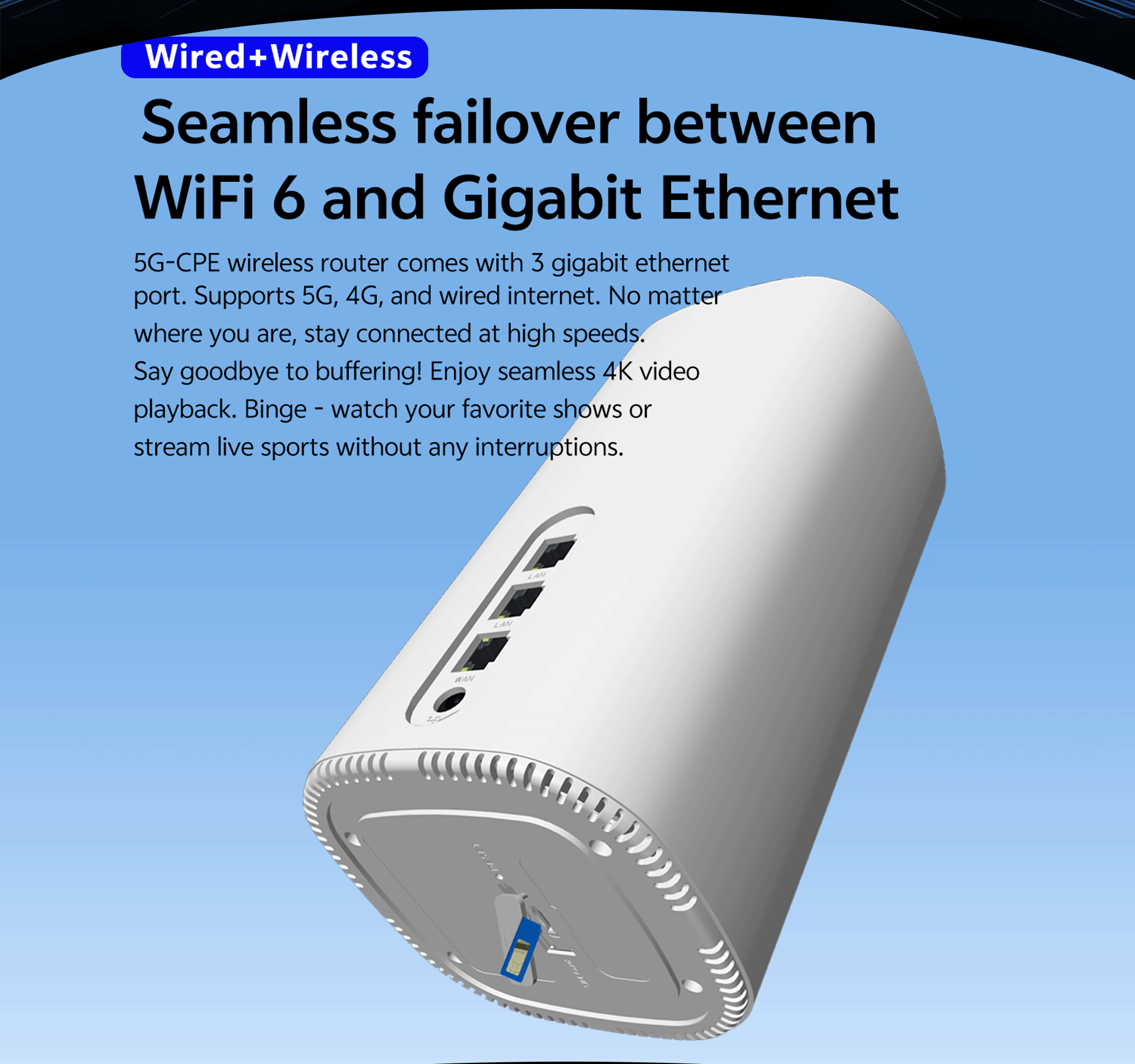

Multiple Interfaces
Provides 1 Gigabit WAN port and 2 Gigabit LAN ports with auto MDI/MDIX support, facilitating connections for various devices.
Large Capacity Battery
Equipped with a 20000mAh battery, supporting long-term usage, ideal for mobile scenarios.
Multiple Working Modes
Supports AP, router, and repeater modes, adapting to different network deployment needs.
Smart Management Features
Offers web management, client management, parental controls, and guest network features for easy network configuration and management.
Powerful Hardware Configuration
Features MT7981BA+MT7976CN+MT7531AE chipset, dual-core A53 1.3GHz processor, and 256MB DDR3 memory for smooth operation.
Wide Band Support
Supports global mainstream 5G and 4G bands, including n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79, etc.
High Transmission Speeds
5G SA mode offers speeds up to 2.1Gbps/900Mbps, NSA mode up to 2.5Gbps/650Mbps, and 4G LTE downlink speeds up to 1.0Gbps.
Flexible Power Supply
Supports Type-C 5V/3A/10W power input and USB 2.0 5V/2A power output, suitable for various power supply scenarios.
Environmental Adaptability
Operating temperature range: -20°C to 50°C; storage temperature range: -40°C to 70°C, suitable for harsh environments.

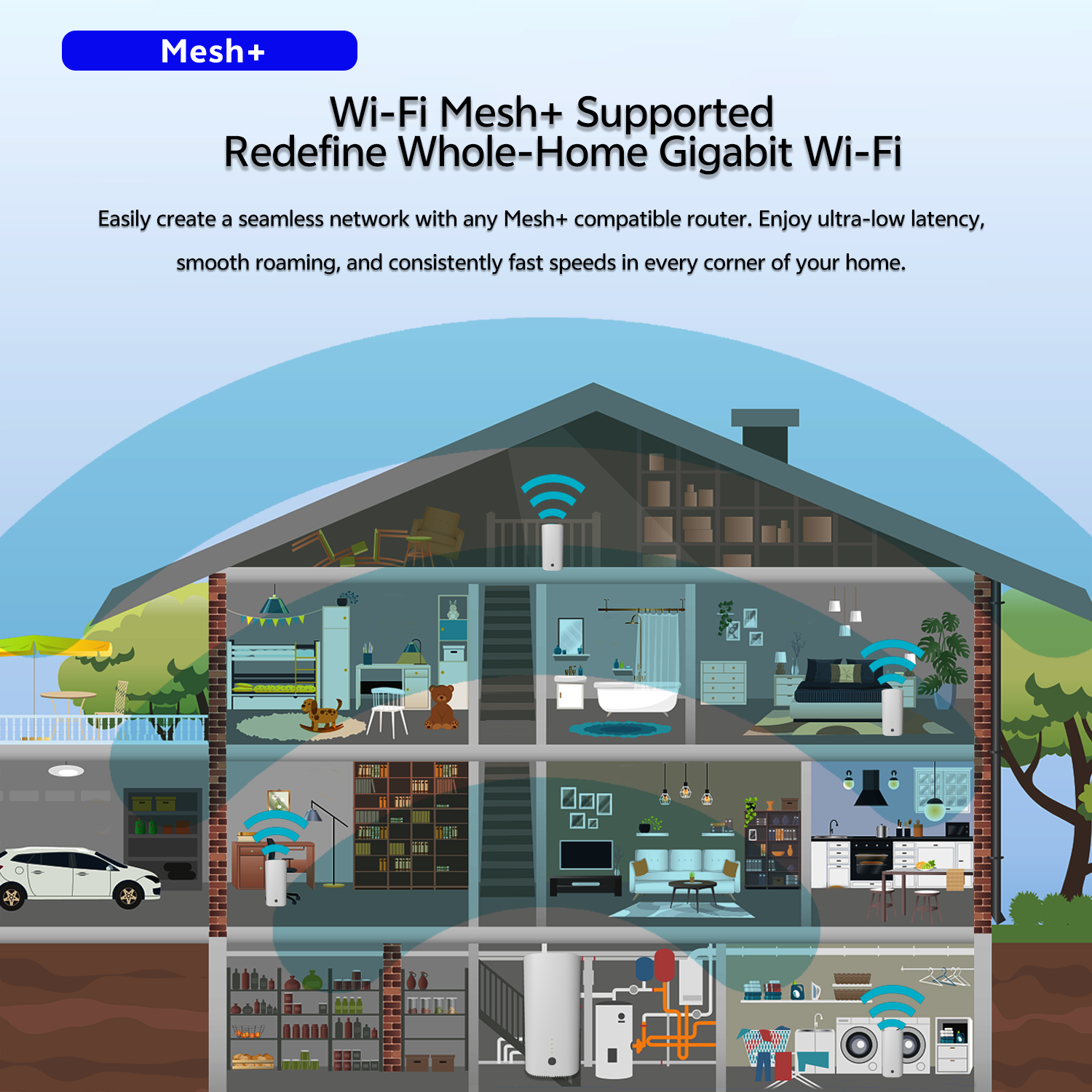

Mesh Network Support
Supports Mesh networking for seamless roaming and multi-node coverage, ideal for large-area network deployments.
Rich Software Features
Runs on OpenWrt 21.02, offering extensive network management features, including bandwidth control, static routing, DDNS, and virtual servers.
Easy Upgrades and Maintenance
Supports web-based software upgrades, allowing users to easily update firmware for optimal performance.
Multiple SSID Support
Supports multiple SSID configurations, enabling independent network access for different users or devices.
Real-Time Network Monitoring
Provides real-time network status display, including device information, 4G/5G dial-up details, LAN status, and WiFi information for easy monitoring.
SMS Functionality
Supports SMS sending and receiving, facilitating remote management and configuration.
