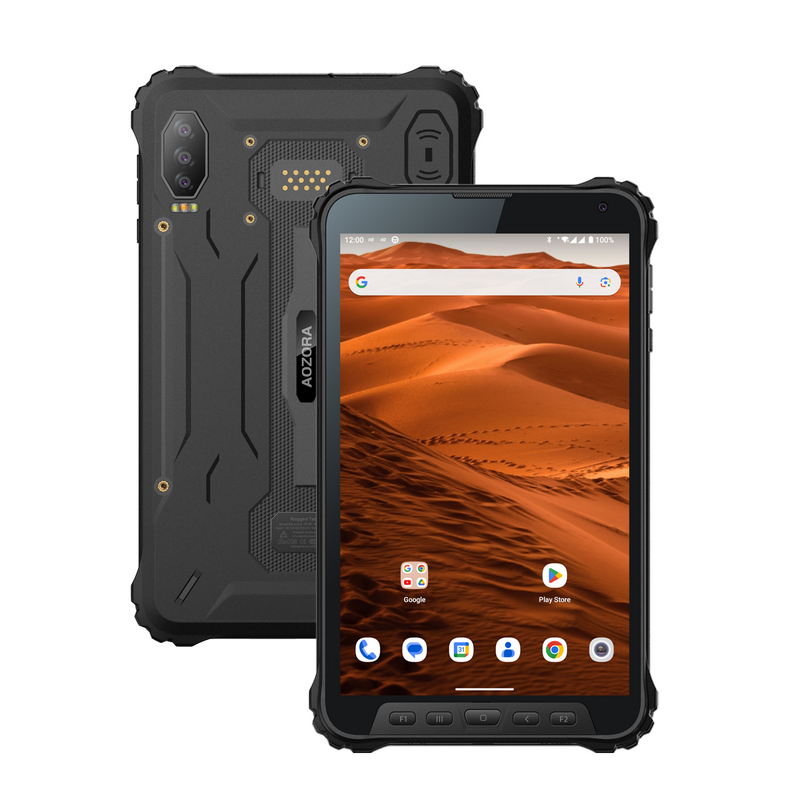

K8 Active fully rugged tablet handheld rugged tablet

Aozora K8 Active Rugged Tablet 8-inch LCD Qualcomm Octa-Core CPU 64MP Camera 8GB RAM+256GB ROM 14 Pin Pogo-pin IP68 & IP69K 600 nits Corning Gorilla Glass 5 Verizon Tablet.


※ Professional Qualcomm Platform
※ Customizable software
※ With five buttons ( F1 & F2 customizable)
※ 14 PIN PogoPin Extended Function
※25MP main rear camera+ 20MP Infrared night vision camera
+13MP Macro Camera
※ True waterproof/dustproof/dropproof: IP68 & IP69K & MIL-STD-810H Protection Rating
※ An 8-inch FHD+ IPS TFT LCD with 600 nits brightness
※ Corning Gorilla Glass 5
※ 10200mAh
※ Barometric Sensor
※ 8GB RAM+256GB ROM+1TB Extended Storage
※ Connected : AT&T, Verizon, and T-Mobile
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

k81pro详情前半部分_01k81pro详情前半部分_02k81pro详情前半部分_03

k81pro详情前半部分_04

k81pro详情前半部分_05

k81pro详情前半部分_06k81pro详情前半部分_07k81pro详情前半部分_08k81pro详情前半部分_09k81pro详情前半部分_10k81pro详情前半部分_11k81pro详情前半部分_12k81pro详情前半部分_13k81pro详情后半部分_01k81pro详情后半部分_02k81pro详情后半部分_03k81pro详情后半部分_04k81pro详情后半部分_05k81pro详情后半部分_06k81pro详情后半部分_07k81pro详情后半部分_08k81pro详情后半部分_09k81pro详情后半部分_10k81pro详情后半部分_11k81pro详情后半部分_12

Product Model

K8 ActiveK81 Pro (Gordon)

8 Inch Rugged Tablet (Professional   Edition)

System Physical Standard Configuration:

Type

Details

Descriptions

Product Description

Product Form

Rugged Android Tablet

Dimensions

220X131X14.5mm

Water proof

IP68 / IP69K

LCD

Screen Size

8 inch

Screen Resolution

1200*1920 FHD+ IPS TFT LCD

Screen Brightness

600 nits high brightness, Sunlight readable

TP

Type

Corning 5th generation Gorilla Glass

Support

Capacitive Multipoint touch, Support glove touch

Battery

Type

Built-in Lithium-ion polymer battery (Pure cobalt)

Capacity

10200mAh

System hardware configuration:

Type

Details

Descriptions

CPU

Type

Qualcomm Octa-core, Kryo™ 260, 64-bit   architecture CPU

Speed

4x Cortex A73 @2.0GHz + 4x Cortex A53   @2.0GHz

Subsystem

GPU

Qualcomm Adreno™ 610 GPU @950MHz

DPU

Qualcomm Adreno™ 921 DPU

NPU

Qualcomm Hexagon™ 683 compute DSP, 2x HVX   @1.0GHz

Modem

Qualcomm Snapdragon™ X11 LTE modem

RAM

Capacity

6GB LPDDR4X

ROM

Capacity

128GB UFS2.1

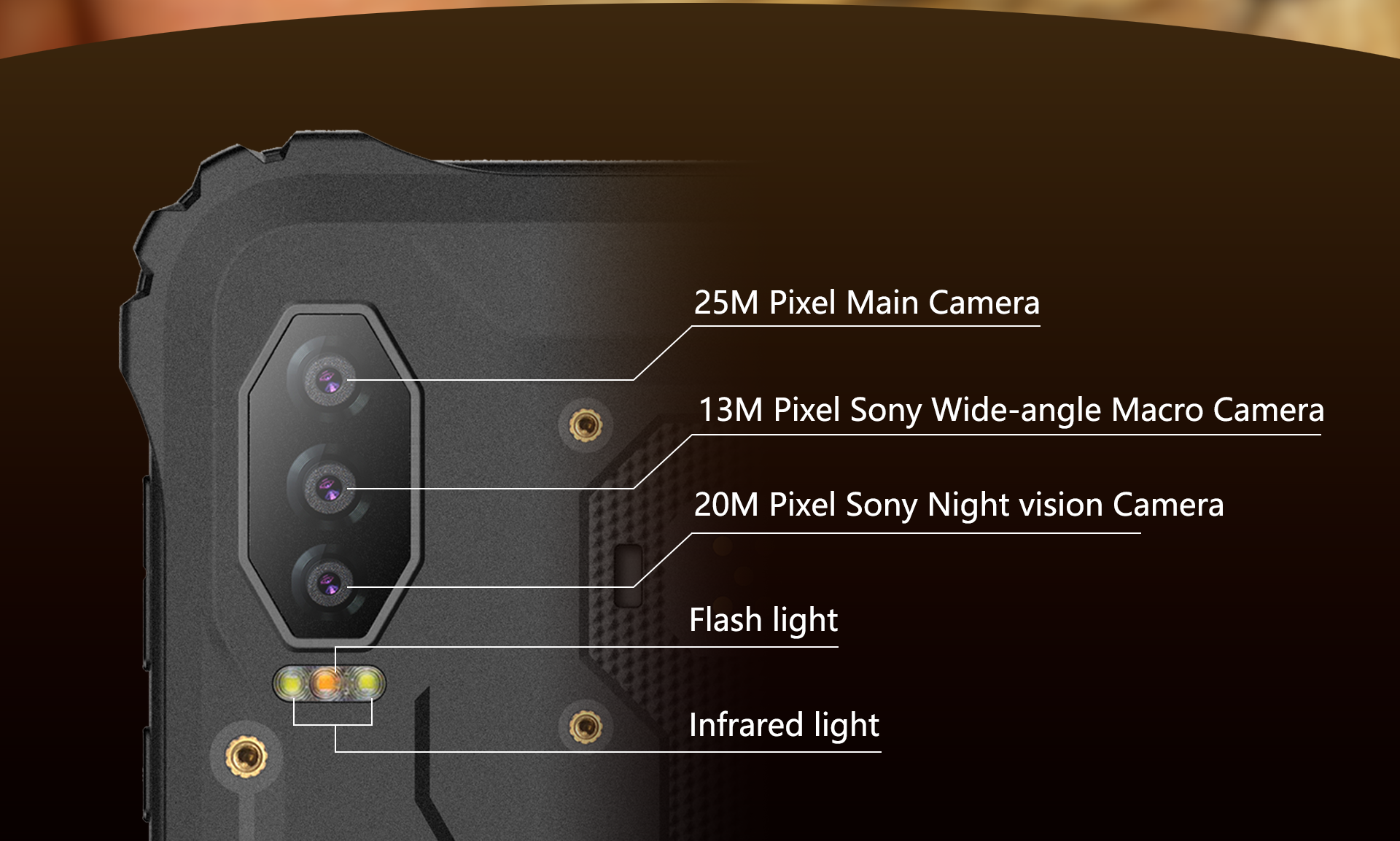

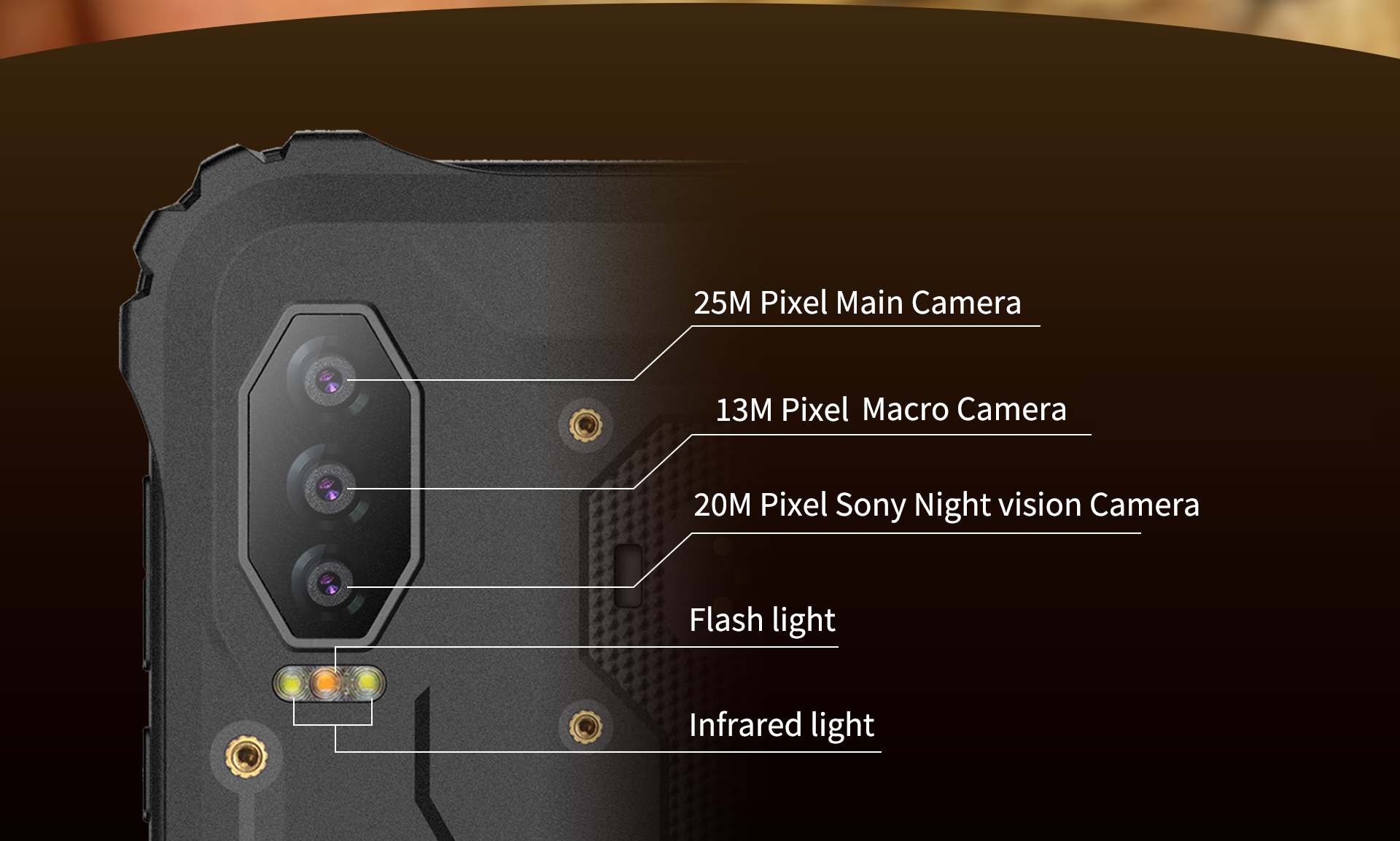

Camera

Front

13M Pixel Front Camera

Rear

25M Pixel Main Camera

20M Pixel Night vision Camera

13M Pixel Wide-angle Macro Camera

Lock Screen

Screen lock type

Password

Pin

Pattern

Face

Speaker

Type

High Power Box Speaker, Max Power 2.2W

Receiver

Input device

Built-in

MIC

Input device

Built-in

Flash

Built-in

Support

Motor

Built-in

Support

G-Sensor

Built-in

Support

Gyroscope

Built-in

Support

Light Sensor

Built-in

Support

Proximity Sensor

Built-in

Support

E Compass

Built-in

Support

Hall Sensor

Built-in

Support

Barometric Sensor

Built-in

Support

NFC

Built-in

NFCIP-1 & NFCIP-2

Location

Built-in

Qualcomm L1:GPS/ GLONASS/ BDS/ Galileo/   NavIC/ QZSS
  Qualcomm Sensor-Assisted Positioning

Side Key

Type

Power,Volume Up,Volume Down

Key Pad

Type

Home,Retun,Menu,Fun1,Fun2

POGOPIN 1x USB2.0 D+,D-, Used for connect External USB2.0 devices,such as USB camera, USB signal to Ethernet port and so on.
1x UART TX,RX,(1.8V TTL)

Used for connect External UART devices,such as:

Infrared rangefinder, High-precision positioning module, UHF RFID,1D and 2D scanning dock, RS232 signal interface, RS485 signal interface, CAN signal interface, Fingerprint recognition module and other UART interface function modules.

1x 5V Out 5V 1A OUT

Used for Power the module of the external devices:

1. Power the module circuit board of the back clip.

2. Power the external devices, such as charging your mobile phone.

1x Charging In 5V 2A IN

Used to power and charge the tablet from the outside.

1. For in-vehicle applications. The vehicle's 12V/48V DC converts the circuit and powers the tablet through the back clip voltage. At this time, the tablet does not need to be loaded with a battery..

2. The tablet can be charged from the outside, just like a power bank charges your tablet through the POGO PIN.

3x GPIO 1.8V Used for the control signals of external back clip devices.

POGO PIN

Type

1x USB2.0, 1x Uart, 1x 5V Out, 1x   Charging In, 3x GPIO.

Network Connections:

Type

Details

Descriptions

2G/3G/4G

Built-in

LTE FDD:   B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
  LTE TDD: B41

LTE Category

Built-in

LTE Cat 6, 2x2 MIMO, 2×20MHz Carrier   Aggregation
Maximum Downlink speed of up to 300 Mbps

Wierless

Hotspot

Support

WIFI

Wi-Fi 6-ready, 802.11ax-ready, 802.11a/b/g/n/ac,   2.4GHz & 5GHz
Qualcomm FastConnect™ 6100 system

Bluetooth

Bluetooth 5.1,  Qualcomm TrueWireless™ Technology

Interface Configuration:

Type

Details

Descriptions

USB

Data transfer supportive

USB 3.1 (5 Gbps) Type-C, supports USB OTG

Audio Jack

Digital Type-C headphone jack

Charging

Qualcomm Quick Charge™ 3 technology

SIM Card Slot

Mobile Data

SIM*1 (SIM Card Tray)

TF Card Slot

Data transfer supportive

Micro SD3.0*1, up to 1TB

Necessary Accessories:

Type

Details

Descriptions

Charger

US Standard

18W (maximum charging power)

USB Cable

Standard Configuration

Type-C to Type-C Cable

Software Configuration:

Type

Details

Descriptions

Operating System

Operating system version

Android 13 & EDLA

Approval

Carrier

AT&T, Verizon, T-Mobile

Regulatory

PTCRB, FCC(North America)

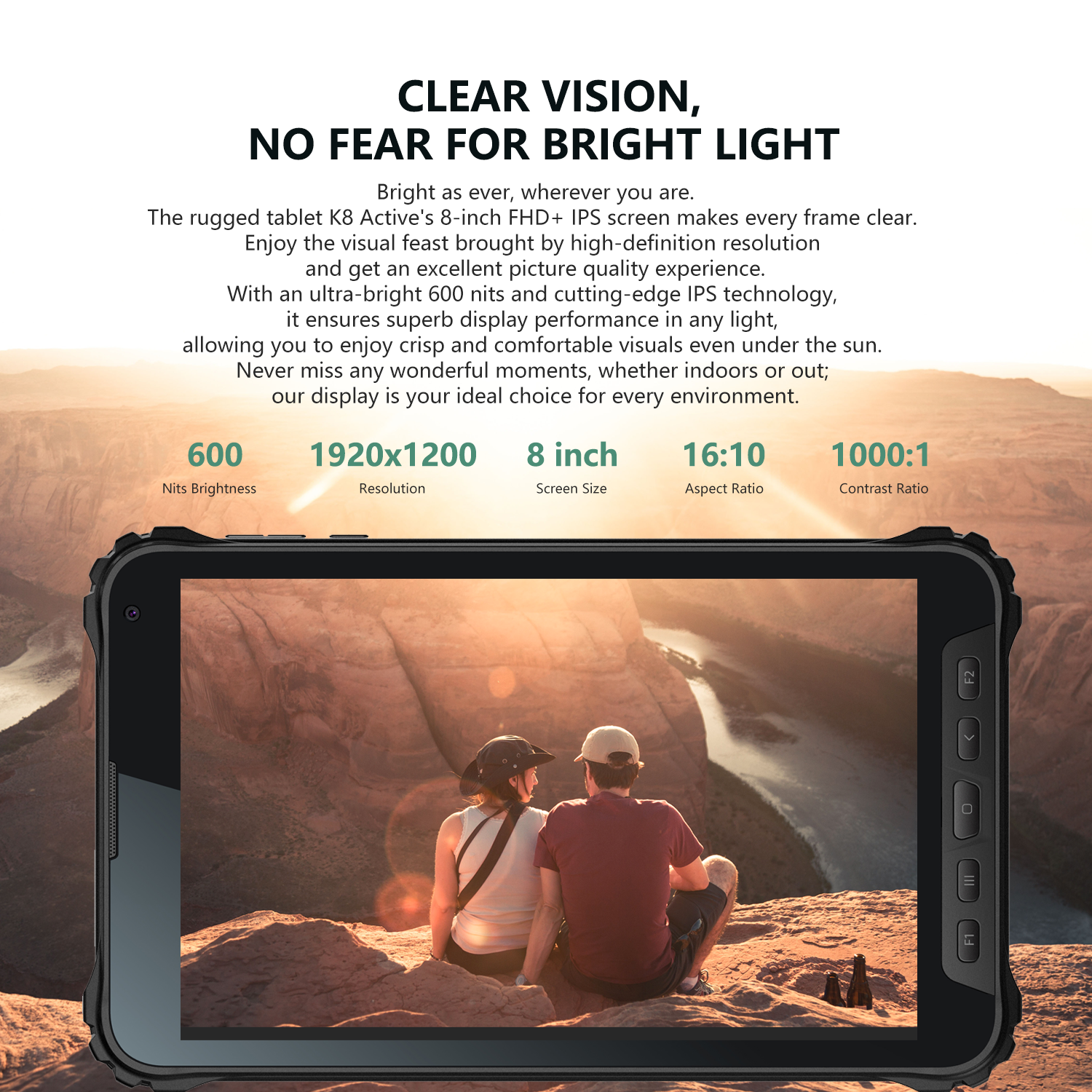

1. Clear Vision, No Fear for Bright Light

Bright as ever, wherever you are.The rugged tablet K8 Active's  8-inch FHD+ IPS screen makes every frame clear. Enjoy the visual feast brought by high-definition resolution and get an excellent picture quality experience.With an ultra-bright 600 nits and cutting-edge IPS technology, it ensures superb display performance in any light, allowing you to enjoy crisp and comfortable visuals even under the sun. Never miss any wonderful moments, whether indoors or out; our display is your ideal choice for every environment.


2. Corning Gorilla Glass 5: Touch the Future without Limitation

Our rugged tablet K8 Active is equipped with Corning Gorilla Glass 5, offering unbreakable durability against daily scratches and impacts. The capacitive multi-touch technology, also supports glove operation, ensuring every swipe and tap is precisely responsive regardless of the environment.Whether exploring, creating, indoors or outdoors, our tablets are your reliable partners.


3. Qualcomm Octa-Core Processor     Unleash speed and control performance

Powered by the Qualcomm Cortex Octa-Core processor(4x Cortex A73+ 4x Cortex A53) and Adreno 610 GPU, our device is the perfect fusion of speed and power. Whether it's multitasking or high-definition gaming, it delivers an incredibly smooth experience. Feel the surging power of technology and make every operation swift and effortless. The third-generation Qualcomm AI engine intelligently responds, making the device more attuned to you.

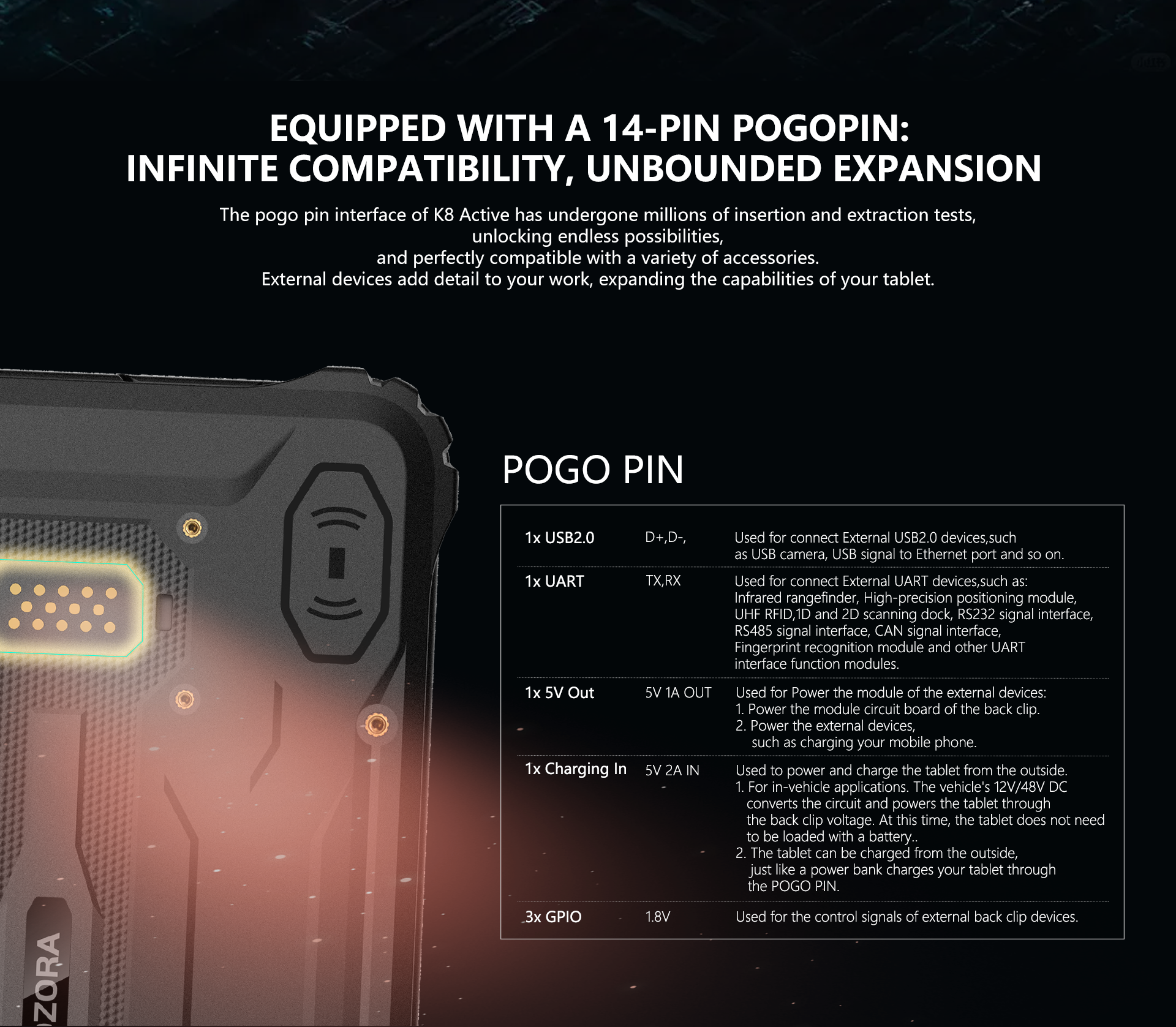

4. Equipped with a 14-Pin Pogo Pin: Infinite Compatibility, Unbounded Expansion.

The pogo pin interface of K8 Active has undergone millions of insertion and extraction tests, unlocking endless possibilities, and perfectly compatible with a variety of accessories. External devices add detail to your work, expanding the capabilities of your tablet


5. Exceptional Battery Life, Up to 30 Days of Standby Time

The rugged tablet K8 Active has a 10200mAh battery, providing an impressive 30-day standby time.Beyond its remarkable battery life, the K8 Active embodies a lifestyle of uninterrupted connectivity, providing you with extended talk time and navigation. A single charge supports multi-shift work.With infrequent charging needs, you can work without worries.

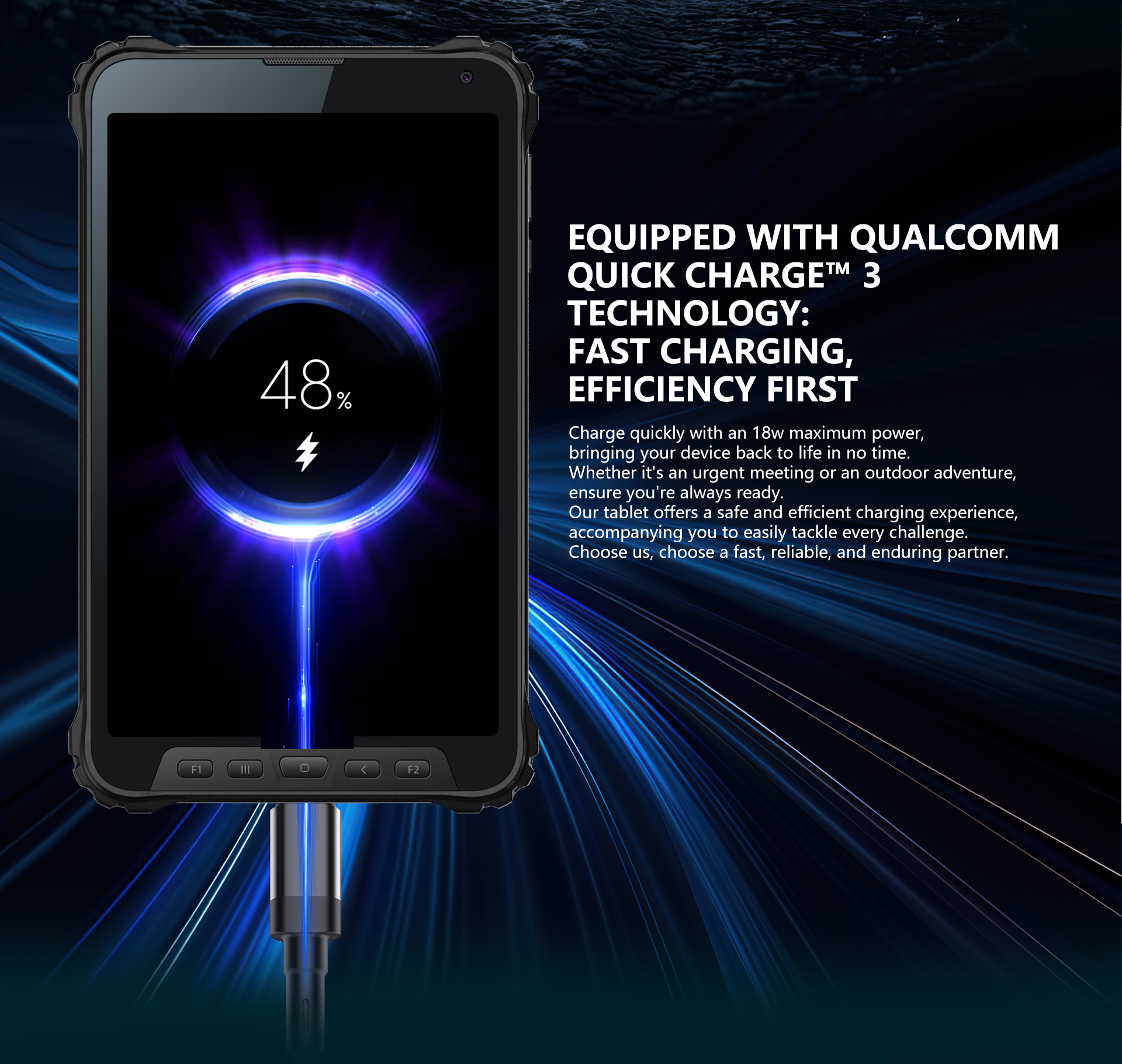

6. Equipped with Qualcomm Quick Charge™ 3 Technology: Fast Charging, Efficiency First

Charge quickly with an 18W maximum power, bringing your device back to life in no time. Whether it's an urgent meeting or an outdoor adventure, ensure you're always ready. Our tablet offers a safe and efficient charging experience, accompanying you to easily tackle every challenge. Choose us, choose a fast, reliable, and enduring partner.


7. Customized Physical Buttons: Within Reach, Effortlessly Operated

The rugged tablet K8 Active ensures that you can maintain precision and convenience in any situation. Whether it's on a wet construction site, a dusty factory, or under extreme weather conditions, the physical buttons provide reliable feedback and durable performance.It also provides two customizable keys, F1 and F2, which can be freely set to the desired shortcut key function.


8. 32MP Front Camera   Image-like Power for Wonderful Selfie Moments

The new 32MP high-definition front camera turns every selfie into a high-quality masterpiece. It captures every detail with clarity, even in low-light conditions.


9. 64MP Rear Main Camera: Capture Every Detail in High Definition

Experience professional-level photography. Whether it's for capturing memories, work documentation, or everyday life moments, it delivers stunning detail and color to achieve the effect you desire.


10. 20MP SONY IMX350 Night Vision Camera: See Everything in the Dark

The K8 Active is equipped with an advanced Night Vision Camera-SONY IMX350, designed to work under the most demanding lighting conditions. Whether it's on a sparsely starry night or in an indoor environment with insufficient light, the Night Vision Camera captures clear and delicate images, ensuring you don't miss any details.


11. 13MP SONY IMX258 Wide-angle Macro Camera: Explore the Micro World, Capture the Beauty of Details

The K8 Active features a 13MP SONY IMX258 wide-angle micro camera, designed for capturing intricate images. Whether for industrial inspection, scientific research, or outdoor exploration, this high-resolution camera offers you a clear and authentic visual experience. You can capture clear and complex shots within a range of 3 to 10 centimeters. Make every shot a masterpiece of precise capture, showcasing the power of detail anytime, anywhere.


12. Always Ready to Meet Your Storage Needs

The rugged tablet K8 Active is equipped with 8GB of RAM,  making it easy to quickly process complex work files or run multiple applications simultaneously. With its 256GB ROM and support for up to 1TB of expandable storage, the K8 Active ensures you'll never run out of space. It's perfect for work and life needs that require handling large volumes of data and high-speed caching.


13. IP68/IP69K & MIL-STD-810H: Ultimate Standards Protection: Unmatched Durability and Reliability

Whether venturing underwater or working in high-temperature, high-pressure industrial environments, our tablet is your most reliable partner in any harsh condition.Choose our rugged tablets to be confident in every mission, ensuring that your work is uninterrupted and your data is safe, no matter how harsh the environment. Ideal for industrial and outdoor exploration applications requiring high reliability.


14.  Advanced USB 3.1 Type-C Interface: Unleashing the Era of High-Speed Connectivity

The K8 Active is equipped with an advanced USB 3.1 (5 Gbps) Type-C interface and supports USB OTG functionality, bringing revolutionary speed and convenience to your data transfers and device connections. Whether you need to quickly transfer large files or connect various peripherals via OTG, this versatile interface is up to the task. Additionally, the inclusion of a Digital Type-C headphone jack offers you a pure, lossless digital audio experience, ensuring the best sound quality for both work and entertainment.


15. Supports CAT6 Network Standard: Lightning-fast Connection, Efficiency Reigns

High-speed network connection enables K8 Active to better handle multimedia content,which is crucial for business and professional users who need to sync data and process work documents quickly.


16. Certified by AT&T, Verizon, and T-Mobile: North America's Top Carriers - No Worries About Your Existing SIM Card

No longer restricted to a single operator,we give you the freedom to choose.Whether it's for business travel or family trips, the K8Active can be your trusted companion.Embrace the freedom of seamless connectivity now and enjoy the endless possibilities of communication.


17. Android 13 Operating System: Take You into a Brand New Era of Smart Systems

The new intelligent operating system has faster response speed and more intelligent and simple design interface, which brings users a more comfortable and convenient experience, with excellent performance and unlimited customization possibilities.


18. Supports OTG Reverse Charging: Your Reliable Backup Power Source

When there is no power source or outdoor adventure, the rugged tablet K8 Active's reverse charging support enables you to use it as a power source to charge other devices, ensuring you have a backup power supply anywhere you go.

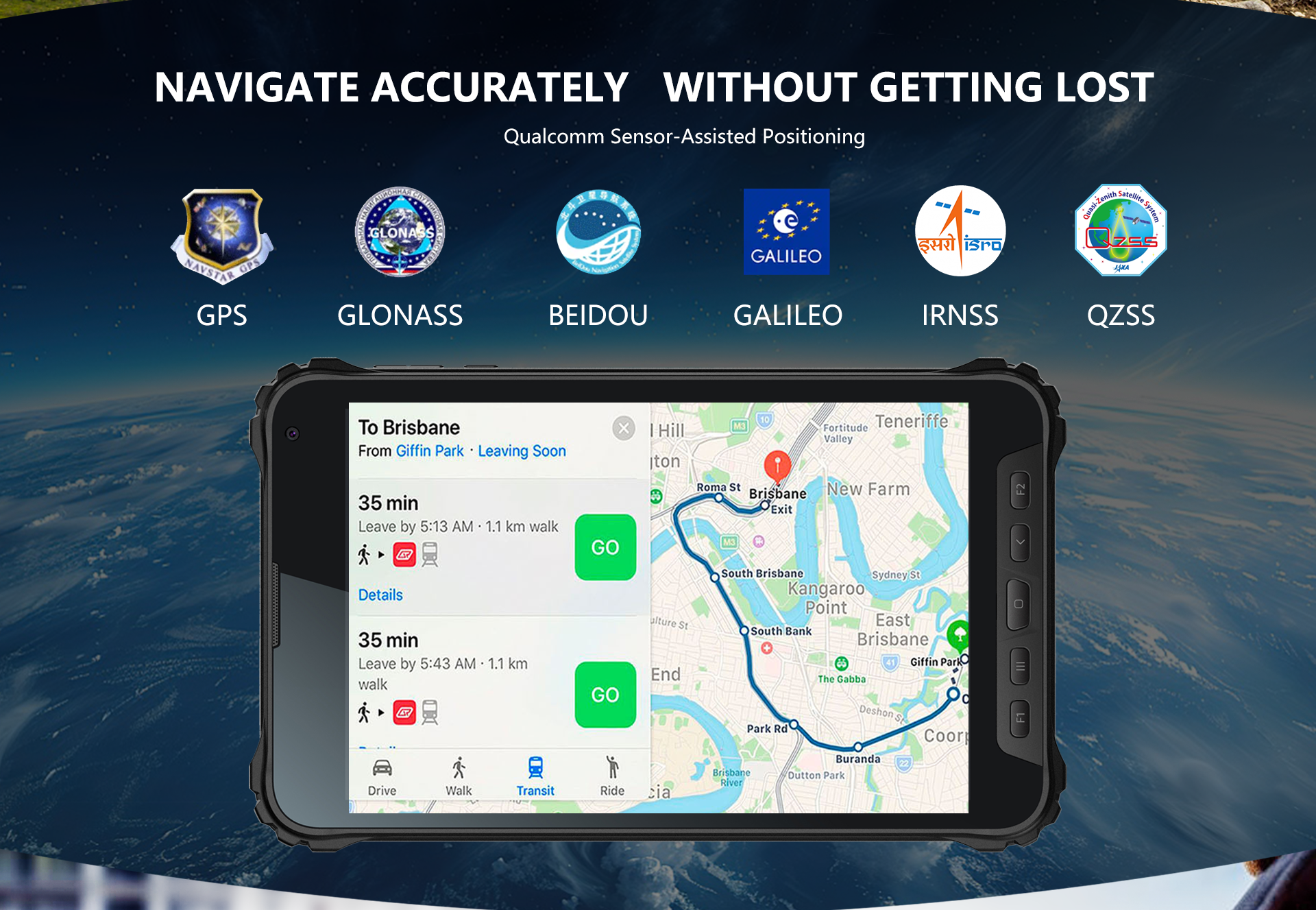

19.Navigate Accurately      Without Getting Lost  Qualcomm Sensor-Assisted Positioning

The K8 Active rugged tablets is equipped with a uniquely Qualcomm CPU. The CPU is the first supports India's NavIC satellite system and is also the first to embrace dual-frequency GNSS. Experience connectivity with six major global navigation systems including NavIC, QZSS, GPS, GLONASS, Galileo, and BDS.

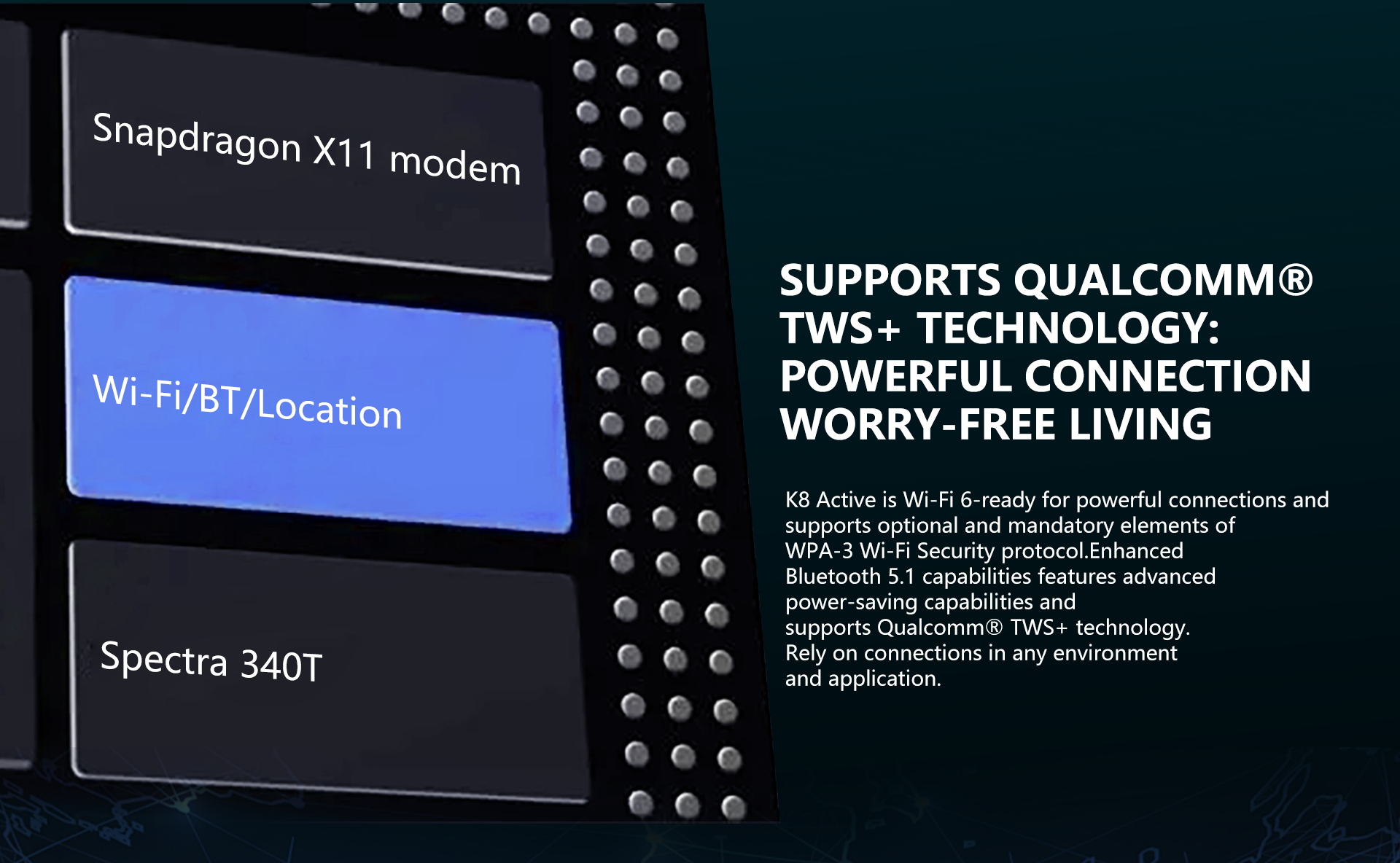

20.Supports Qualcomm® TWS+ Technoloty: Powerful Connection  Worry-Free Living

K8 Active is Wi-Fi 6-ready for powerful connections and supports optional and mandatory elements of WPA-3 Wi-Fi Security protocol.Enhanced Bluetooth 5.1 capabilities features advanced power-saving capabilities and supports Qualcomm® TWS+ technoloty. Rely on connections in any environment and application.


21.Tap and go!

Say goodbye to information risks and enjoy a convenient life with K8 Active, equipped with NFC supporting both NFCIP-1 and NFCIP-2 protocols. Liberate your hands and boost life efficiency. Easy operation meets the diverse needs of work and life.


22. ALL-WEATHER USE       REVOLUTIONARY TOUCH TECHNOLOGY

Perfect for outdoor workers, users in cold climates, and professionals requiring hand protection. Operate without removing aloves, ensuring health and safety while enhancing convenience.


23.  Custom Software,Tailored Just For You

In your field of expertise, your device needs to be equally powerful. Our K8 Active rugged tablet, designed for demanding environmentsalso offers personalized software customization services.Tailor your own smart device to based on your specific business needs
